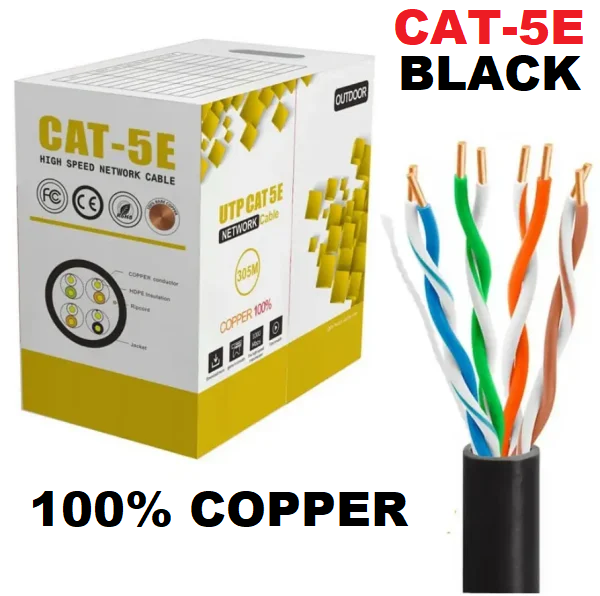

CAT5E 305M ROLL BLACK CABLE OUTDOOR CAT5E- FULL COPPER

CAT5E 305M ROLL BLACK CABLE OUTDOOR CAT5E- FULL COPPER

£ 90

CAT5E 305M ROLL CABLE OUTDOOR CAT5E-FULL COPPER

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.

Specification

  • Copper: 100%
  • Conductor : Solid OFC
  •  Strands : 8 x 1/0.5mmØ ±2%
  • Conductor : CSA8 x 0.196mm² ±2%
  • Cable : diameter5.2±0.4mmØ
  • Insulation : HDPE 0.87±0.03mmØ
  • Sheath : LDPE 0.55±0.05mm thickness
  • DC resistance : @ 20°C<9.5 ohms/100m
  • Impedance : (1 to 100MHz)100±15 ohms
  • Return loss : >20.1dB @ 100MHz
  • Attenuation : >22dB @ 100MHz
  • NEXT : >35.3dB @ 100MHz
  • Phase delay : >537.60ns @ 100MHz
  • PSNEXT : >32.3dB @ 100MHz
  • ELFEXT :>23.8dB @ 100MHz
  • PSELFEXT : >20.8dB @ 100MHz
  • Cable colour :Black
  • Cable length : 305±1.5m
  • Weight : 8.1Kg

50 in stock

Need help choosing, or want it installed? Call 0161 394 1262 or message us on WhatsApp.

SKU CAT5E-FULL COPPER Categories , Tags , , , Brand:

Key Features

  • Solid copper
  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
PRODUCT TYPE CAT5E OUTDOOR 100% COPPER
LENGTH 305m
Key Features
  • Solid copper
  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
PRODUCT TYPE CAT5E OUTDOOR 100% COPPER
LENGTH 305m
