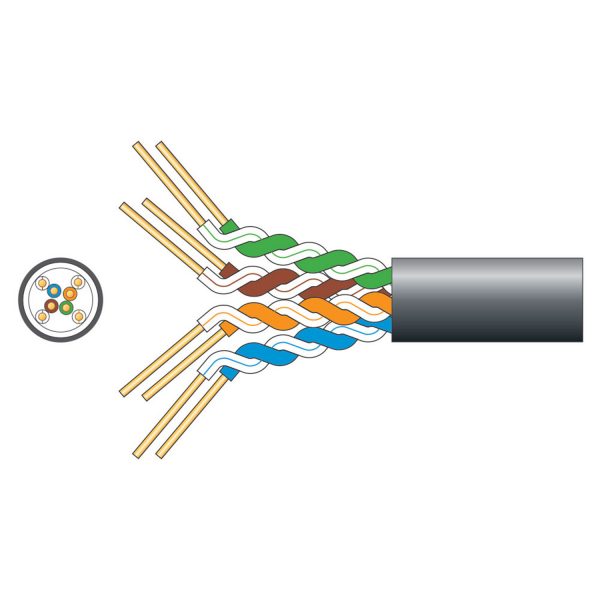

CAT5E 305M ROLL CABLE INDOOR CAT5E-INDOOR

CAT5E 305M ROLL CABLE INDOOR CAT5E-INDOOR

£ 60

CAT5E 305M ROLL CABLE INDOOR CAT5E-INDOOR

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.

Specification

  • Conductor : Solid CCA
  • Strands : 8 x 1/0.51mmØ ±2%
  • CSA8 x 0.204mm²
  • Cable : diameter5mmØ
  • Insulation : HDPE 0.19mm thickness
  • Sheath PVC : 0.5mm thickness
  • Impedance : 100 Ohms (±15)
  • DC resistance : @ 20°C<35 Ohms/100mt
  • Return loss : >20dB @ 100m
  • NEXT : >40dB @ 100m
  • PSNEXT :>38dB @ 100m
  • Cable colour : Grey
  • Length : 305m
  • Weight : 6kg

50 in stock

Need help choosing, or want it installed? Call 0161 394 1262 or message us on WhatsApp.

SKU CAT5E-INDOOR Categories , Tags , Brand:

Key Features

  • Solid copper clad aluminium conductor
  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
Key Features
  • Solid copper clad aluminium conductor
  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
