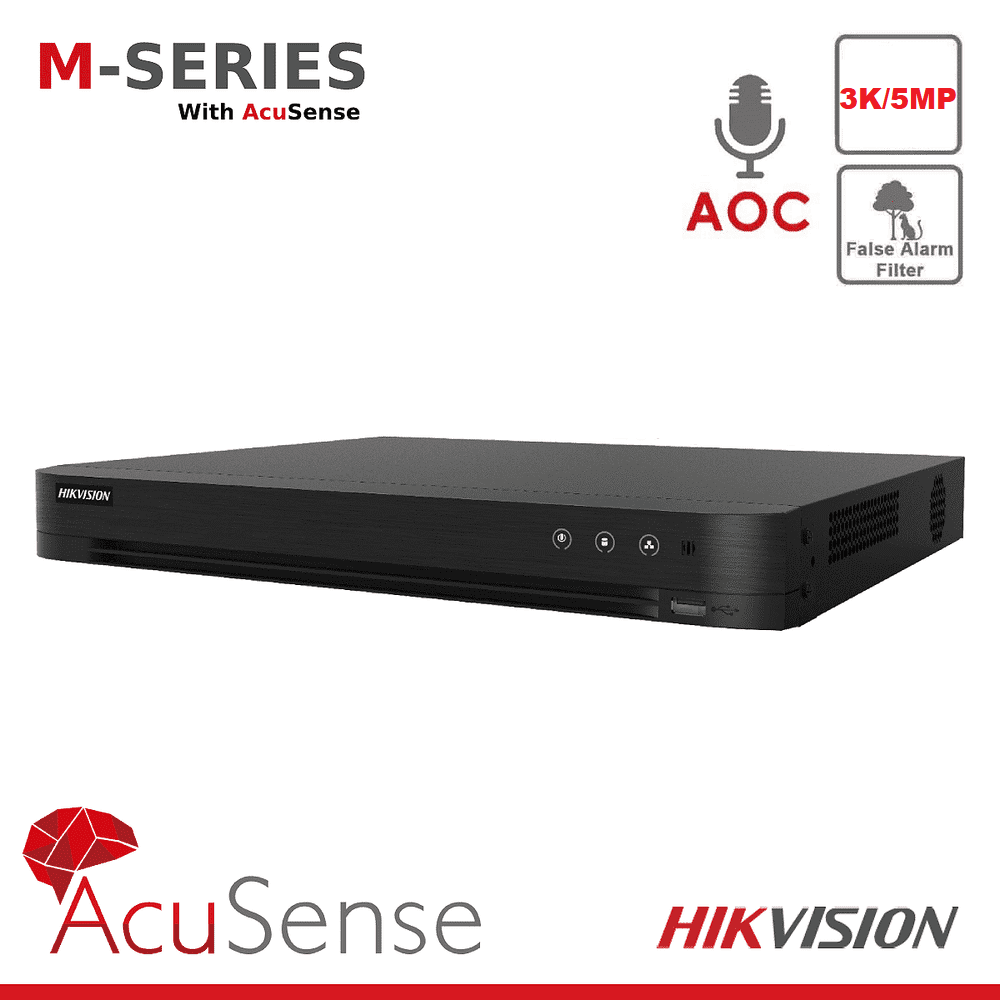

HIKVISION 16CH TURBO HD 1U ACUSENSE DVR 3K/5MP LITE IDS-7216HQHI-M1/XT

PRODUCT TYPE	DVR
CHANNEL	16CHANNEL
MEGAPIXEL	upto 3K/5MP Lite
MANUFACTURER	HIKVISION

Facial Recognition

Face Picture Comparison: Face picture comparison, face picture search (4-ch face picture comparison alarm for HD analog camera)

Face Picture Library

Up to 16 face picture libraries;

HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.



Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;



Perimeter Protection

Human/Vehicle Analysis: Up to 8-ch (advanced model)



Facial Detection

Facial Detection and Capture

Face picture detection, face picture search；

4-ch face picture capture



Video and Audio

IP Video Input: 8-ch (up to 24-ch), Up to 6 MP resolution

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input: 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

HDCVI Input: 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

CVBS Input: PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

Audio Input

1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback: 16-ch



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate: 32 Kbps to 6 Mbps

Dual-stream: Support main stream or sub stream

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Decoding

Decoding Capability: up to 24-ch 1080P@30fps



Network

Remote Connection: 128

Total Bandwidth: 256 Mbps

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface



Auxiliary Interface

SATA: 1 SATA interface, up to 12 TB capacity for each disk

Serial Interface: RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0;

Rear panel: 2 × USB 3.0

Alarm In/Out: N/A (optional to support)



General

Power Supply: 12 VDC, 2 A

Consumption: ≤ 24 W

Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)

Weight: ≤ 2 kg (4.4 lb)
