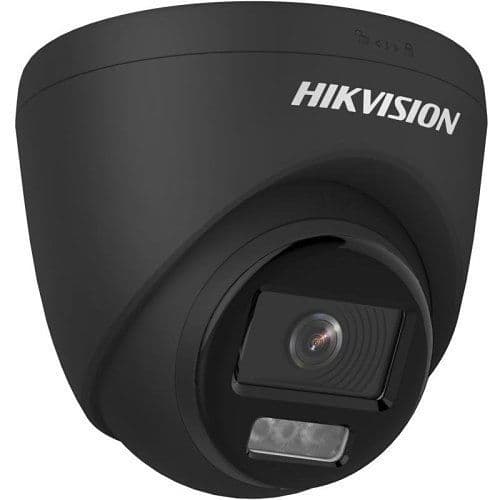

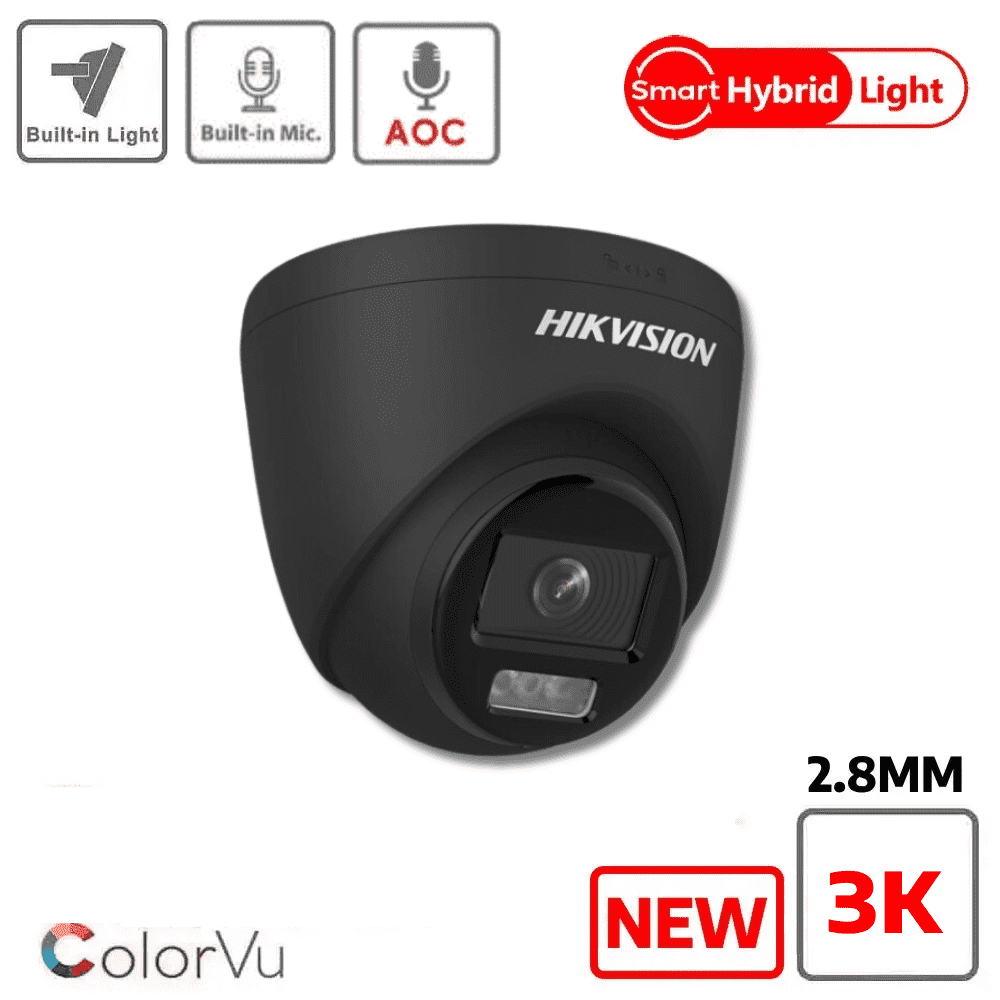

Hikvision 3K Hybrid ColorVu AOC 40M Camera DS-2CE72KF0T-LFS (2.8mm) – BLACK

LENS	2.8mm Fixed lens
MANUFACTURER	Hikvision
MEGAPIXEL	3K
PRODUCT TYPE	Camera, Colorvu Camera, 3K SMART HYBRID CAMERA, AOC COLORVU CAMERA

Camera

Image Sensor: 3K CMOS

Signal System: PAL/NTSC

Resolution: 2960 (H) × 1665 (V)

Frame Rate:

TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps

AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps

CVI: 4 MP @25 fps/30 fps

CVBS: PAL/NTSC

Min. Illumination: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light

Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens: 2.8 mm fixed focal lens

Field of View

2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°

3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°

Lens Mount: M12

Light Alarm: Solid Light Alarm (White Light)

Day & Night: ICR

WDR (Wide Dynamic Range): Digital WDR

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°



Illuminator

Supplement Light Type: IR, White Light

Supplement Light Range: IR: Up to 40 m,White Light: Up to 40 m

Smart Supplement Light: Yes




White Light: Auto/Off

Image Mode: STD / HIGH-SAT / HIGHLIGHT

AGC: Yes

Day/Night Mode: Auto

White Balance: Auto/Outdoor/Global/Manual

AE (Auto Exposure) Mode: HLS;DWDR;BLC;HLC;Global

Noise Reduction: 2D DNR

Language: English

Function: Smart IR;Brightness;Sharpness;AGC;Anti-Banding



Interface

Video Output: Switchable TVI/AHD/CVI/CVBS

Audio In: Built-in mic



General

Power: 12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera.

Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)

Protection Level: IP67

Material: Enclosure: Plastic Main body: Metal

Communication: HIKVISION-C

Dimension: Ø109.98 mm × 98.27 mm (Ø4.33″ × 3.87″)

Weight: Approx. 320 g (0.71 lb.)
