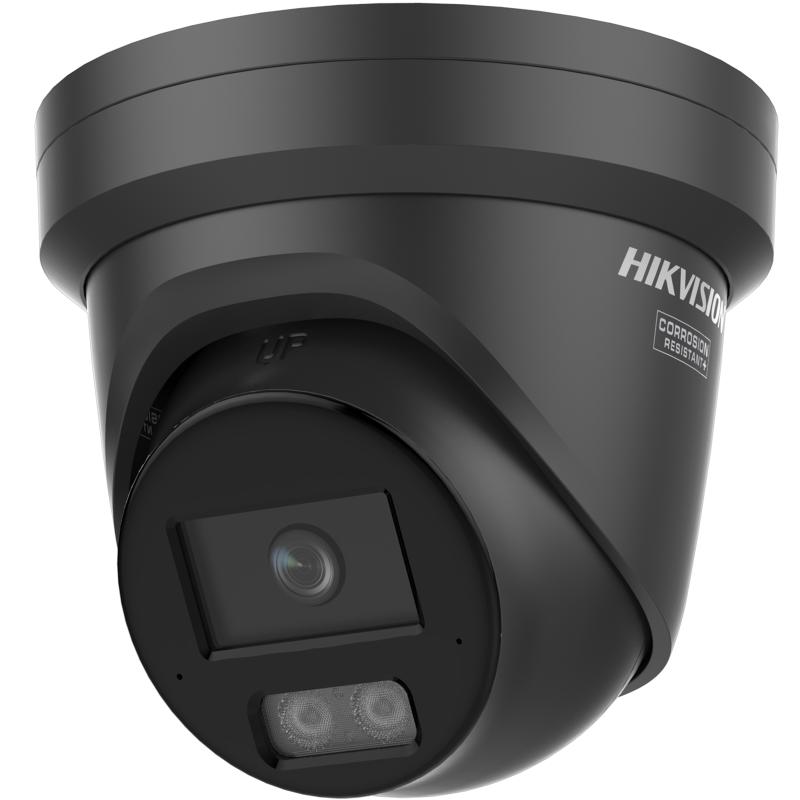

HIKVISION 8MP SMART HYBRID LIGHT WITH COLORVU 2.8MM FIXED TURRET NETWORK CAMERA – BUILT-IN MIC – DS-2CD2387G3-LI(2U)Y BLACK

Color	Black
LENS	2.8mm Fixed lens
MEGAPIXEL	8MP

Camera

Image Sensor: 1/1.8″ Progressive Scan CMOS

Max. Resolution: 3840 × 2160

Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time: 1s to 1/100,000s

Day & Night: IR cut filter

Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°,rotate: 0° to 360°



Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°

Lens Mount: M16

Iris Type: Fixed

Aperture: F1.0

Depth of Field

2.8 mm: 3.3 m to ∞

4 mm: 3.8 m to ∞



DORI

2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m



Illuminator

Supplement Light Type: White Light, IR

Supplement Light Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm



Video

Main Stream

50 Hz:

25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.

Video Bit Rate32 Kbps to 16 Mbps

H.264 Type: Baseline Profile, Main Profile, High Profile

H.265 Type: Main Profile

Bit Rate Control: CBR,VBR

Scalable Video Coding (SVC): H.264 and H.265 encoding

Region of Interest (ROI): 1 fixed region for main stream



Audio

Audio Type: -2U: Mono sound

Audio Bit Rate: -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Audio Compression: -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Sampling Rate: -2U: 8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering: -2U: Yes



Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View: Up to 6 channels

API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Client: iVMS-4200, Hik-Connect,Hik-Central

Web Browser

Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,

Local service: Chrome 80+, Firefox 80+, Edge 89+




Image Parameters Switch: Yes

Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch: Day, Night, Auto, Schedule

Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog

SNR: ≥ 52 dB

Wide Dynamic Range (WDR): 130 dB

Image Stabilization: EIS

Privacy Mask4 programmable polygon privacy masks



Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB

Audio

Built-in Microphone:

-2U: Arrayed dual-microphone

Reset Key: Yes



Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception

Smart Event: Scene change detection

Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email



Deep Learning Function

Face Capture: Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)



General

Power

12 VDC ± 25%, 0.7 A, max. 8.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: IEEE 802.3af, Class 3, max. 11 W

Material: Cover: Metal, main body: Metal

Dimension: Ø138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)

Package Dimension: 170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)

Approx. 750 g (1.7 lb.)

With Package Weight: Approx. 1140 g (2.5 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

RCM: AS/NZS CISPR 32: 2015

IC: ICES-003: Issue 7

KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1

CB: IEC 62368-1: 2014+A11

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment: CE-RoHS: 2011/65/EU

Protection: IP67: IEC 60529-2013

Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
