Original price was: £ 115.£ 108Current price is: £ 108.
50 in stock
Need help choosing, or want it installed? Call 0161 394 1262 or message us on WhatsApp.

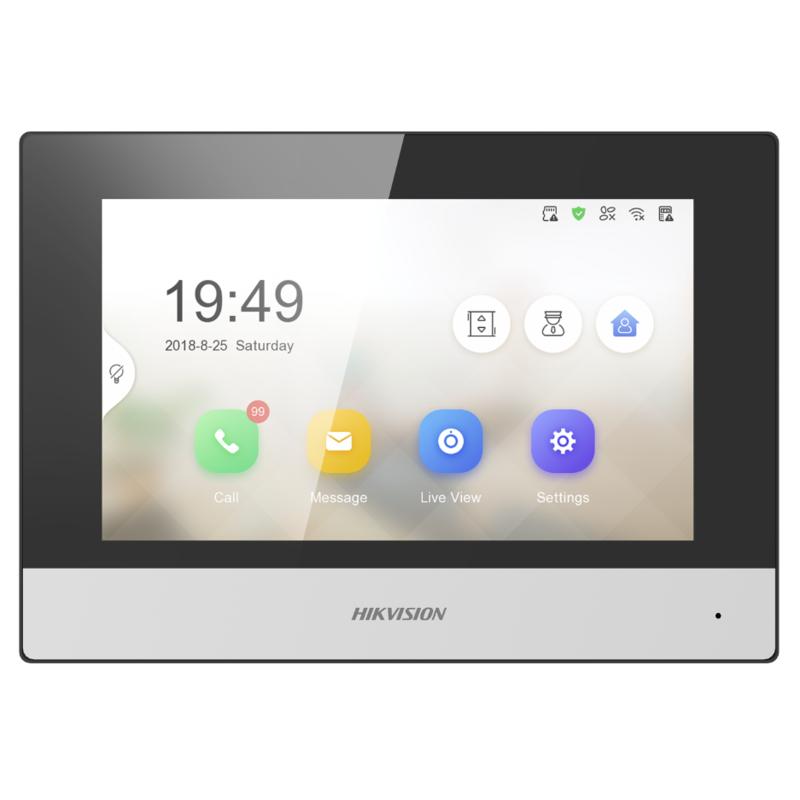

| PRODUCT TYPE | INDOOR STATION FOR INTERCOM DOORBELL |
|---|---|
| MANUFACTURER | HIKVISION |
System Parameters
Operation system: Linux
ROM: 32 MB
RAM: 128 MB
Processor: Embeded high performance processor
Display Parameters
Screen size: 7-inch
Operation method: Capacitive touch screen
Type: Colorful TFT
Resolution: 1024 × 600
Audio Parameters
Audio input: 1 built-in omnidirectional microphone
Audio compression standard: G.711U/G.711A
Audio output: 1 built-in loudspeaker
Audio compression bitrate: 64 Kbps
Audio quality: Noise suppression and echo cancellation
Volume adjustment: Adjustable
Capacity
Message capacity
TF card inser
ted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice capacity: 200
Linked indoor extensions capacity: 16
Linked doorphone capacity: 17
Linked network camera capacity: 16
Network Parameters
Network protocol: TCP/IP, SIP, RTSP
Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
3G/4G
Zigbee
Device Interfaces
Alarm input: 8
Network interface: 1 RJ-45 10/100 Mbps self-adaptive
TAMPER
RS-4851 RS-485 (Half duplex)
TF card: Support TF card, up to 128 G
Alarm output: 2
Lock control: 2 relays, Max. 30 VDC 0.3 A
General
Button/
Installation: Surface mounting
Weight
Net weight: 355 g (0.8 lb)
Gross weight: 683 g (1.5 lb)
Protective level/
Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working humidity: 10% to 90% (no-condensing)
Dimension (W × H × D): 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
Battery/
Application environment: Indoor
Power consumption: ≤ 5 W
Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
| PRODUCT TYPE | INDOOR STATION FOR INTERCOM DOORBELL |
|---|---|
| MANUFACTURER | HIKVISION |
System Parameters
Operation system: Linux
ROM: 32 MB
RAM: 128 MB
Processor: Embeded high performance processor
Display Parameters
Screen size: 7-inch
Operation method: Capacitive touch screen
Type: Colorful TFT
Resolution: 1024 × 600
Audio Parameters
Audio input: 1 built-in omnidirectional microphone
Audio compression standard: G.711U/G.711A
Audio output: 1 built-in loudspeaker
Audio compression bitrate: 64 Kbps
Audio quality: Noise suppression and echo cancellation
Volume adjustment: Adjustable
Capacity
Message capacity
TF card inser
ted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice capacity: 200
Linked indoor extensions capacity: 16
Linked doorphone capacity: 17
Linked network camera capacity: 16
Network Parameters
Network protocol: TCP/IP, SIP, RTSP
Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
3G/4G
Zigbee
Device Interfaces
Alarm input: 8
Network interface: 1 RJ-45 10/100 Mbps self-adaptive
TAMPER
RS-4851 RS-485 (Half duplex)
TF card: Support TF card, up to 128 G
Alarm output: 2
Lock control: 2 relays, Max. 30 VDC 0.3 A
General
Button/
Installation: Surface mounting
Weight
Net weight: 355 g (0.8 lb)
Gross weight: 683 g (1.5 lb)
Protective level/
Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working humidity: 10% to 90% (no-condensing)
Dimension (W × H × D): 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
Battery/
Application environment: Indoor
Power consumption: ≤ 5 W
Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
Our own DBS-checked engineers can survey, install and hand over a complete CCTV system, with a free quote first.
