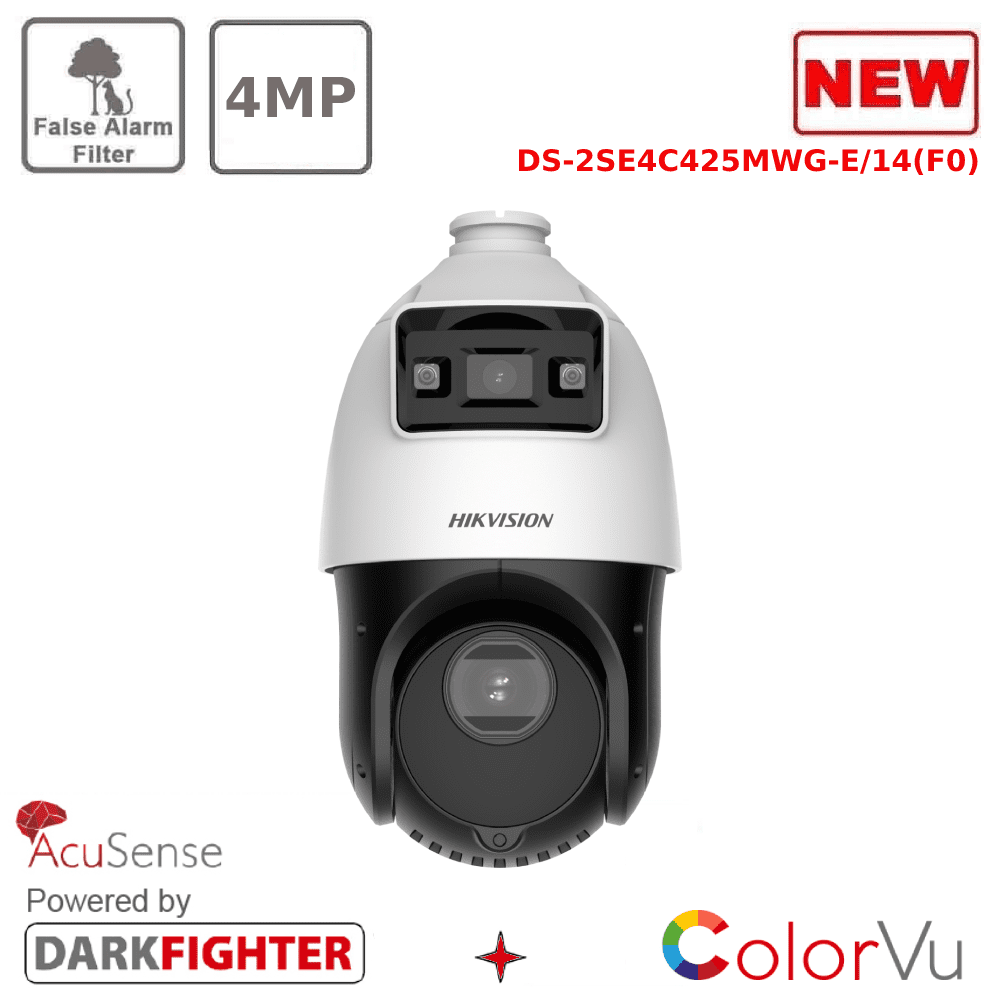

HIKVISION TANDEMVU 4-INCH 4MP 25X COLORFUL & IR NETWORK SPEED DOME PTZ DS-2SE4C425MWG-E(14F0)

Camera

Image Sensor: [Bullet channel]: 1/3″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS

Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Min. Illumination

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed: 1 s to 1/30,000 s

Day & Night: ICR

Zoom: [PTZ channel] 25 × optical, 16 × digital

Slow Shutter: yes



Lens

Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical

FOV

[Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°;

[PTZ channel]:

Horizontal field of view: 55° to 2.4° (wide-tele),

Vertical field of view: 33° to 1.4° (wide-tele),

Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus: semi-auto||manual||auto

Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6

Zoom Speed: [PTZ channel]: approx. 3.6 s



Illuminator

Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light

Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m

Smart Supplement Light: Yes



PTZ

Movement Range (Pan): 360°

Movement Range (Tilt): -15° to 90° (auto flip)

Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s

Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Pan: yes

Presets: 300

Preset Freezing: yes

Patrol Scan: 8 patrols, up to 32 presets for each patrol

Pattern Scan: 4 pattern scans

Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan

3D Positioning: yes

PTZ Status Display: yes

Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output

Power-off Memory: yes



Video

Main Stream

[Bullet channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

[PTZ channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[Bullet channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[Bullet channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression: H.265||H.264||MJPEG

Video Bit Rate: 32 kbps to 16384 kbps

H.264 Type: baseline profile||main profile||high profile

H.265 Type: main profile

Scalable Video Coding (SVC): yes

Region of Interest (ROI): 8 fixed regions for each stream



Audio

Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)

Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz

Environment Noise Filtering: yes



Network

ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets

Simultaneous Live View: 20

API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host: 32

Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter

Network Storage: NAS (NFS, SMB/ CIFS)|| ANR

Client: iVMS-4200||Hik-Connect

Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+




Image Parameters Switch: Yes

Image Settings: sharpness, saturation, brightness, contrast

Day/Night Switch: day, night, auto, scheduled-switch

Wide Dynamic Range (WDR): 120 dB

SNR: ≥ 52 dB

Defog: Digital defog

Image Stabilization: EIS

Image Enhancement: BLC,HLC,3D DNR

Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Regional Focus: Yes

Regional Exposure: Yes



Interface

Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB

Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω

Alarm: 1 alarm input, 1 alarm output

Reset: yes



Event

Basic Event: [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)

Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection

Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)



Deep Learning Function

Face Capture: [Bullet channel] no, [PTZ channel] yes



General

Power: 12VDC, PoE+

Dimension: Ø 166 mm × 375 mm (Ø 6.5″ × 14.7″)

Weight: Approx. 2.4 kg (13.2 lb.)

Material: ADC12

Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH

General Function: mirror, password protection, watermark, IP address filter

Demist: Demist by heating the glass

Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light



Approval

Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
