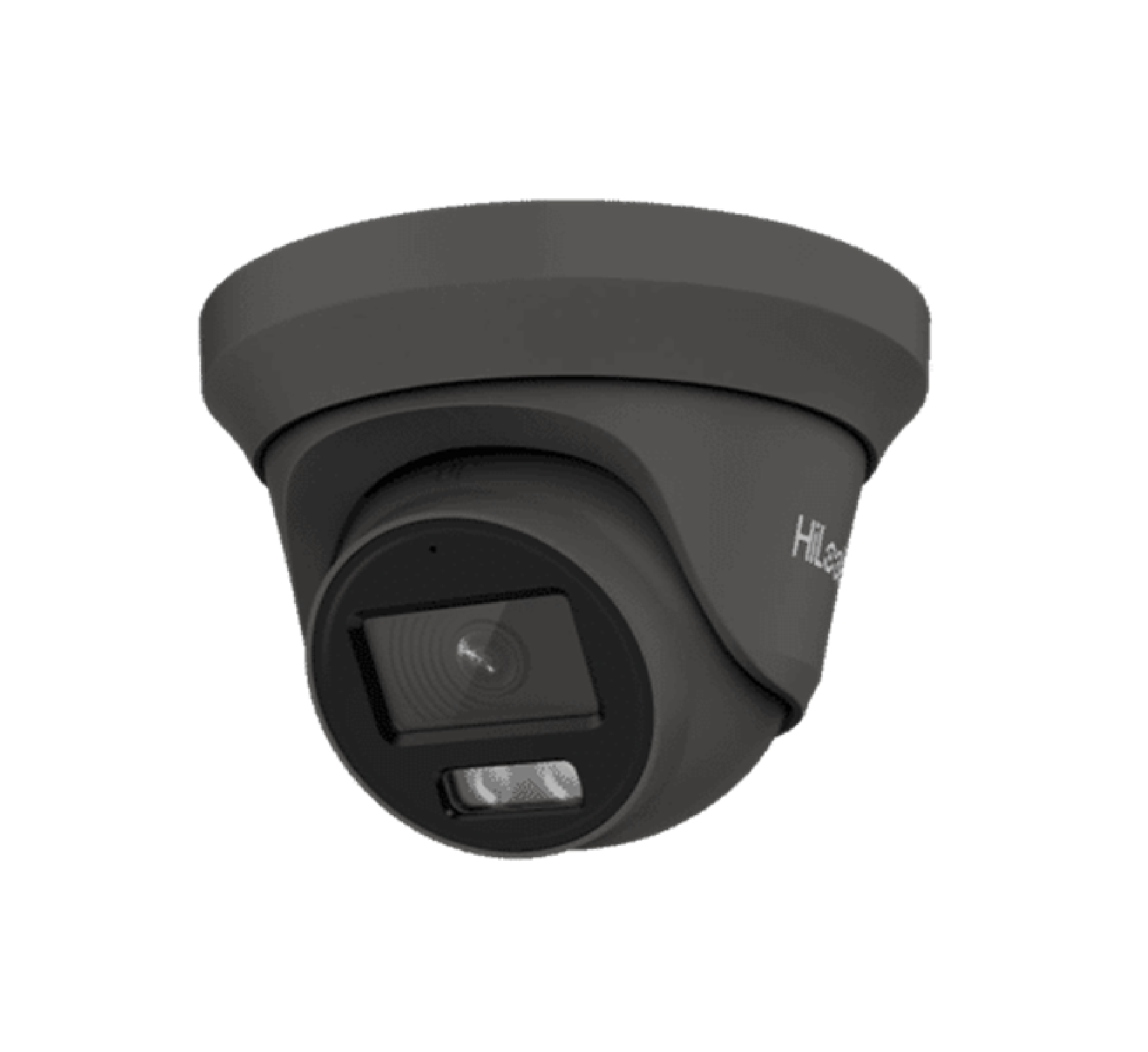

HILOOK 2MP COLORVU TURRET CAMERA 40M IR (2.8mm) THC-T229-M GREY

LENS	2.8mm Fixed lens
MEGAPIXEL	2MP
PRODUCT TYPE	AOC COLORVU CAMERA
Color	Grey

Camera

Image Sensor: 2 MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Signal System: PAL/NTSC



Lens

Lens Type: 2.8 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125°

Lens Mount: M12



Illuminator

Supplement Light Type: White Light

Supplement Light Range: Up to 40 m

Smart Supplement Light: Yes




Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT

Image Settings: Brightness, Sharpness, Anti-banding, AGC

Frame Rate

TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Day/Night Mode: Color

Wide Dynamic Range (WDR): Digital WDR

Image Enhancement: DWDR, BLC, HLC, Global

Noise Reduction3D DNR/2D DNR

White Balance: Auto, Manual



Interface

Video Output: Switchable TVI/AHD/CVI/CVBS

Alarm: Solid Light (White Light)



General

Material: Metal

Power: 12 VDC ± 25%, max. 3.2 W,*You are recommended to use one power adapter to supply the power for one camera.

Dimension: Ø127.9 mm × 97.8 mm (5.04″ × 3.86″)

Weight: Approx. 473 g (1.04 lb.)

Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)

Communication: HIKVISION-C

Language: English



Approval

Protection: IP66
