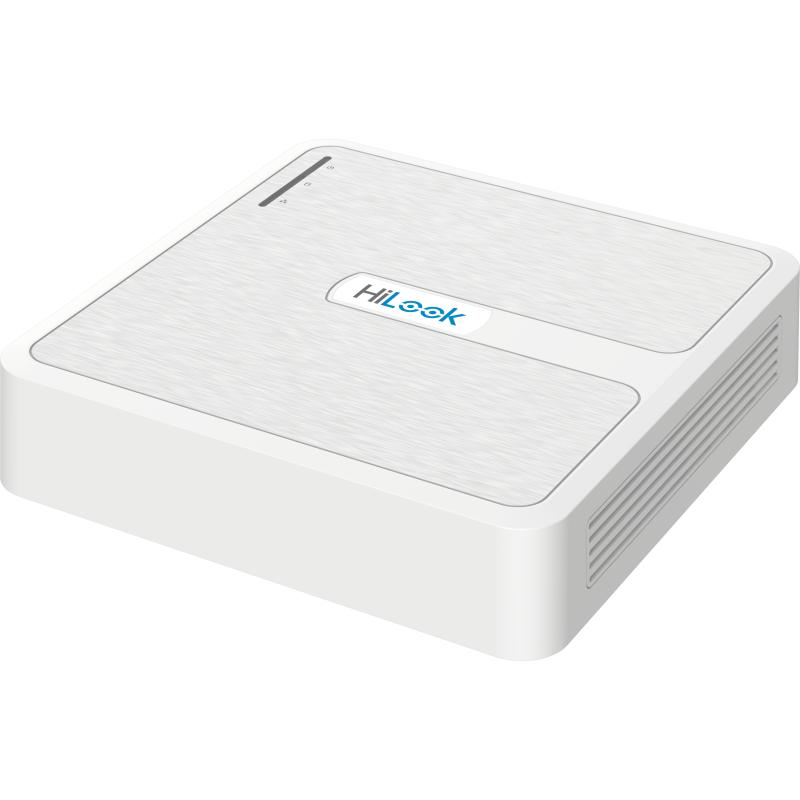

HILOOK 4 CHANNEL DVR 2MP 1080P LITE MINI 1U H.265 (DVR-104G-M1/T)

MEGAPIXEL	2MP
CHANNEL	4CHANNEL
MANUFACTURER	Hilook

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;



Video and Audio

IP Video Input

1-ch (up to 5-ch)

Up to 2MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30

AHD Input: 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

CVBS Input: Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Input

1-ch RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: Reuse the first audio input

Synchronous playback: 4-ch



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate: 32 Kbps to 4 Mbps

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Network

Total Bandwidth: 64 Mbps

Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Connection: 32

Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface



Auxiliary Interface

SATA: 1 SATA interface

Capacity: Up to 4 TB capacity for each disk

USB Interface: Rear panel: 2 × USB 2.0

Alarm In/Out: N/A



General

Power Supply: 12 VDC, 1.5 A

Consumption: ≤ 10 W (without HDD)

Working Temperature: -10 °C to 55 °C (14 °F to +131 °F)

Working Humidity10% to 90%

Dimension (W × D × H): 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)

≤ 0.8 kg (without HDD, 1.8 lb.)
