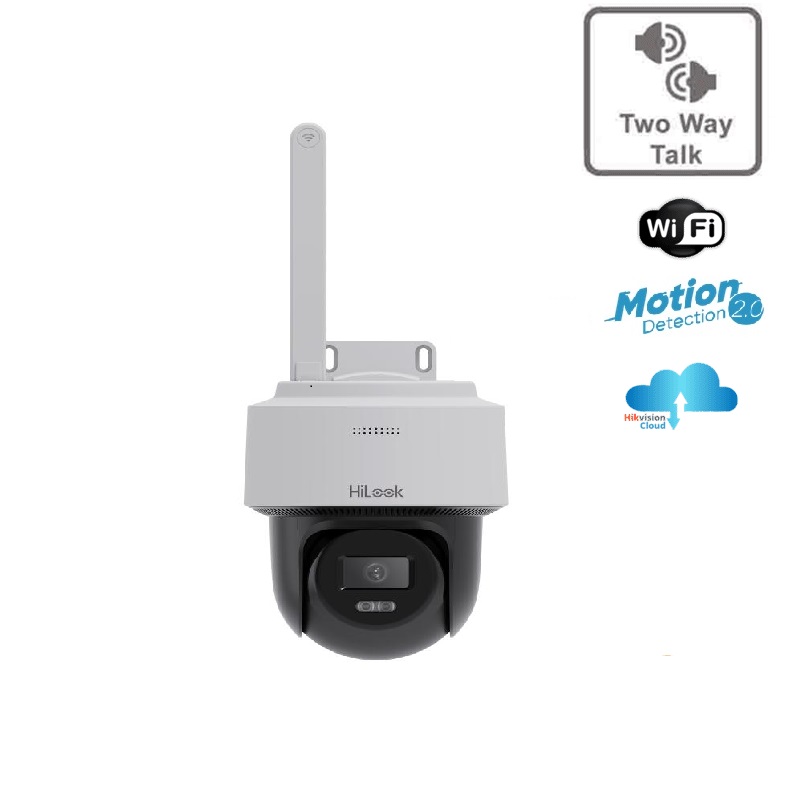

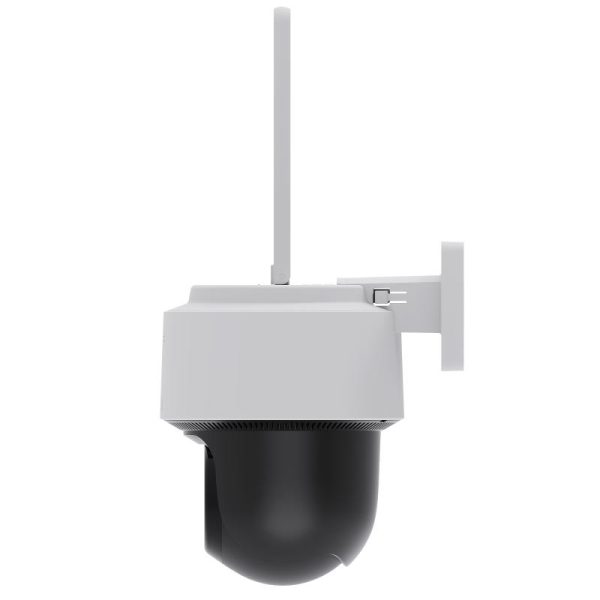

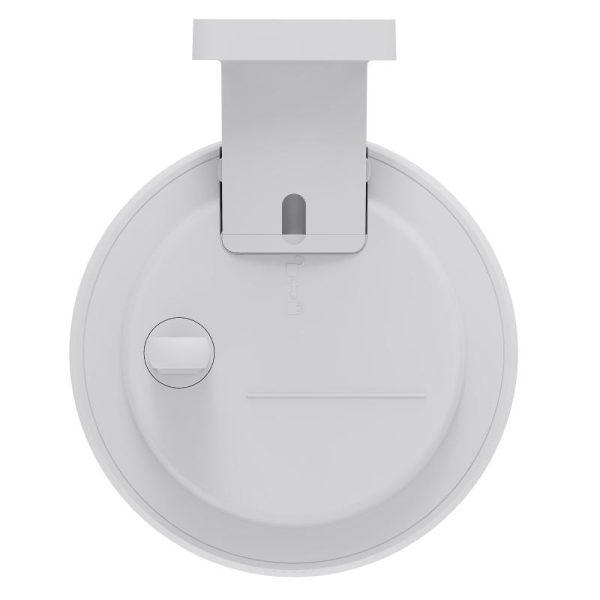

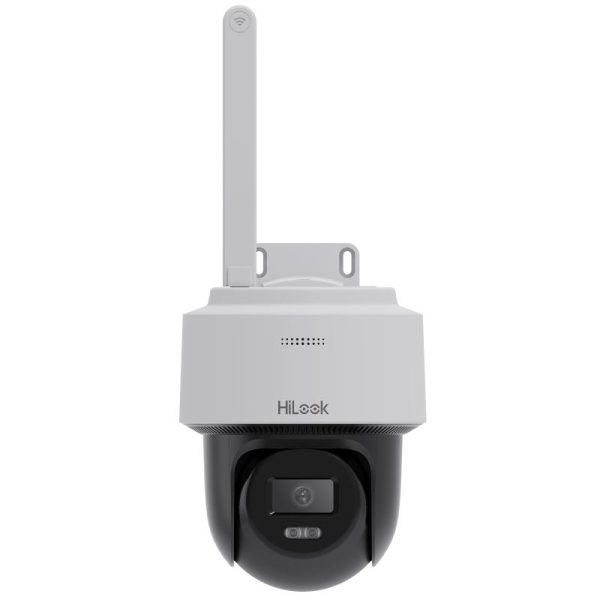

Hilook 4MP IR WIFI PT Network Fixed Lens Camera (2.8mm) PTZ-N2C400I-W

Camera

Image Sensor: 1/2.9″ Progressive Scan CMOS

Max. Resolution: 2560 × 1440

Min. Illumination: Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR



Lens

Focal Length: 2.8 mm

FOV

2.8 mm, horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°

Aperture: F1.6



Illuminator

Supplement Light Type: IR

Supplement Light Range: IR distance: up to 30 m

IR Wavelength: 850 nm



PTZ

Movement Range (Pan): 0° to 345°

Movement Range (Tilt): 0° to 80°

Pan Speed: Up to 25°/s

Tilt Speed: Up to 20°/s



Video

Main Stream

50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)

60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)

Video Compression

Main stream: H.265/H.264,

Sub-stream: H.265/H.264

Video Bit Rate256 Kbps to 2 Mbps

H.264 Type: Baseline profile, Main profile, High profile

H.265 Type: Main profile



Audio

Audio Compression: G.711,AAC-LC

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate: 8 kHz,16 kHz

Environment Noise Filtering: Yes



Network

Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS

API: ONVIF, SDK

Security: Password protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface

Client: iVMS-4200, HiLookVision, Hik-Partner-Pro



Wireless (Wi-Fi)

Encryption Mode: WPA-PSK/WPA2-PSK

Wi-Fi Protocols: IEEE802.11b,IEEE802.11g,IEEE802.11n

Frequency Range: 2.412 GHz to 2.472 GHz

Channel Bandwidth: 20 MHz

Modulation

802.11b: CCK, QPSK, BPSK,

802.11g: OFDM,

802.11n: OFDM

Transfer Rate: 11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps

Wireless Range

Up to 50 m

(The performance varies based on actual environment)




Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software

Wide Dynamic Range (WDR): Digital WDR



Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone: 1 built-in microphone

On-board Storage: Built-in memory card slot, support microSD / micro SDHC / microSDXC card, up to 512 GB

Built-in Speaker: 1 built-in speaker



Event

Basic Event: Motion detection (support alarm triggering by specified target type (human and vehicle)), exception

Linkage: Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite



Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggered by specified target types (human and vehicle)



General

Power: 12 VDC ± 10%, 1 A, max. 10 W, Ø2 mm coaxial power plug, reverse polarity protection

Dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″)

Weight: Camera weight: 565 g (1.25 lb.) With package weight: 1020 g (2.25 lb.)

Material: Plastic

Operating Condition: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)

General Function: heartbeat, mirror



Approval

EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)

Safety: CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment: CE-RoHS (2011/65/EU),WEEE (2012/19/EU)

Protection: IP66 (IEC 60529-2013)
