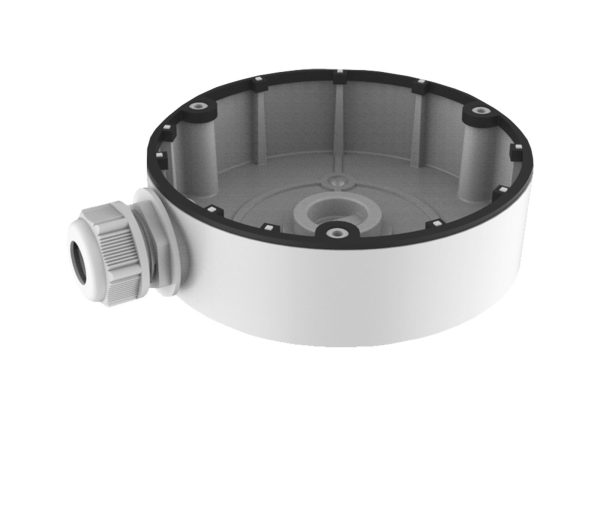

METAL CAMERA JUNCTION BOX /DEEP BASE – WHITE HA-TR13

• Junction Box / Camera Base
• Aluminum Alloy material with surface spray treatment
• Appearance: White
• Waterproof design
• Side inlet and bottom inlet
• Dimension: Φ 110 mm × 144.3 mm × 48 mm (Φ 4.33″ × 5.68″ × 1.89″)
• Weight: Approx. 185 g (0.40 lb.)

Compatible with:

Hikvision Cameras (5MP DS-2CE78H0T-IT3FS, 3K DS-2CE72KF0T-LFS, 4K DS-2CE72UF3T-E & DS-2CE78U1T-IT3F)

Hilook: 2MP IP ColorVU IPC-T229HA-LU, 4MP IP ColorVU IPC-T249HA-LU, 8MP IP ColorVU IPC-T280HA-LUF/SL

Hizone Pro: 2MP, 5MP, 3K and 8MP ColorVU Cameras

Notes

• The junction box should be installed on the flat surface
• The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mounting bracket
• Waterproof rubber is necessary for outdoor application
• The maximum load capacity of the junction box is 4.5 kg (9.9 lb.)
