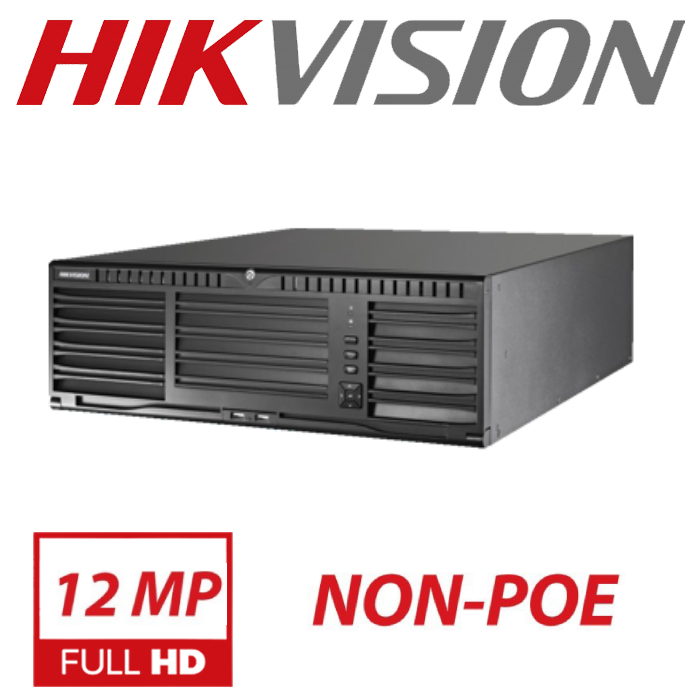

Hikvision 12MP 128CH NVR 4K NONE POE DS-96128NI-I16

CHANNEL	128 CHANNEL
CODEC	H.265+
MANUFACTURER	Hikvision
MEGAPIXEL	12MP
PRODUCT TYPE	NVR

Video and Audio

IP Video Input: 128-ch

Incoming Bandwidth (RAID Mode): 576 Mbps

Outgoing Bandwidth: 512 Mbps

Incoming Bandwidth: 576 Mbps

Outgoing Bandwidth (RAID mode): 512 Mbps

TLS outgoing bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)

HDMI Output: Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

LCD Output: Optional: One 7 inch LCD

Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

Decoding Format: H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)

Recording Resolution

32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF

*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.

Synchronous playback: Up to 16 channels

Decoding Capability

1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.



Network

Network Protocol: IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS

Camera Access Protocol: HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO

Network Interface: 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface



PoE

Interface: 16 SATA interfaces supporting hot-plug



RAID

RAID Type: RAID0, RAID1, RAID5, RAID 6, and RAID10



Auxiliary Interface

SATA: 2 × mini SAS interface (optional)

eSATA: 1 × eSATA interface

Capacity: Up to 10 TB for each HDD

Serial Interface: RS-232; RS-485; Keyboard

USB Interface: Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0

Alarm In/Out: 16/8

Extension Board: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.



General

Power Supply: 100 to 240 VAC, 50 to 60Hz, 5 A

Consumption: ≤ 140W

Working Temperature: 0 °C to + 50 °C (32 °F to 122 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 447 × 490 × 133 mm (17.6 × 19.3 × 5.2 inch)

Weight: ≤ 16 kg (35.3 lb)
