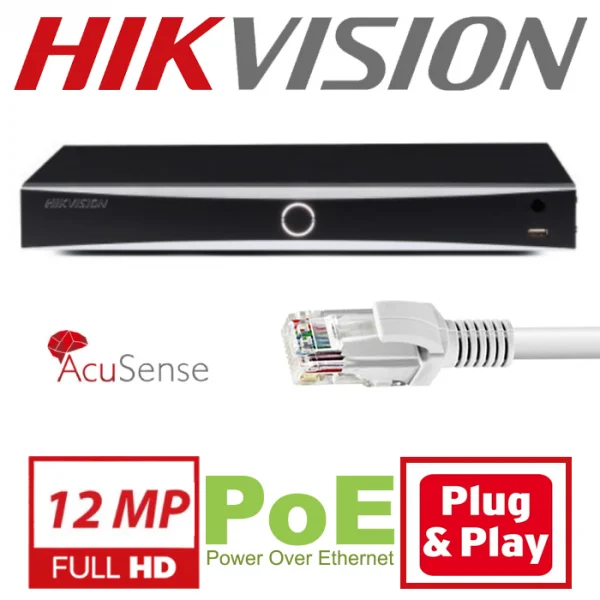

Hikvision 12MP 4K 16CH POE NVR ACUSENSE DS-7716NXI-I4/16P/S(E)

CHANNEL	16CHANNEL
CODEC	H.265+
MANUFACTURER	Hikvision
MEGAPIXEL	12MP
PRODUCT TYPE	NVR

Intelligent Analytics

AI by NVR: Facial recognition, perimeter protection, motion detection 2.0

AI by Camera: Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA

Engine1, engine mode is adjustable



Facial Recognition

Facial Detection and Analytics: Face picture comparison, human face capture, face picture search

Face Attributes: Wearing glasses, wearing a mask, facial expression, body temperature

Face Picture Library: Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)

Face Picture Comparison (Captured from Camera): 8-ch

Facial Detection and Analytics Performance: 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)



Motion Detection 2.0

By Camera: All channels

By NVR: All channels for Hikvision cameras



Perimeter Protection

By Camera: All channels

By NVR

4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

Up to 12 rules in total



ANPR

By Camera: All channels

Vehicle Attributes: Plate number, license plate color, license plate type

Plate Attributes: Vehicle brand, vehicle color, vehicle type



Video and Audio

IP Video Input: 16-ch

Incoming Bandwidth: 160 Mbps

Outgoing Bandwidth: 256 Mbps

HDMI 1 Output: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz;4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output

HDMI 2 Output: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz;1920 × 1080/60Hz, HDMI2/VGA independent output

VGA Output

1920 × 1080/60 Hz; 1-ch, 1920 × 1080/60Hz

HDMI1/VGA simultaneous output

Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)



Decoding

Decoding Format: H.265+/H.265/H.264+/H.264

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

Synchronous Playback: 16-ch

Decoding Capability

Enable AI by NVR: 20-ch@1080p (30 fps)

Disable AI by NVR: 32-ch@1080p (30 fps)

Dual-Stream Recording: Support

Stream Typel: Video, Video & Audio

Live View Window Division: 1/2/4/6/8/9/16

Aux Port Window Division: 1/2/4/6/8/9/16

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM



Network

Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Remote Connection: 128

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

API: ONVIF (profile S/G); SDK; ISAPI

Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Camera Access Protocol: ONVIF(Version 2.5), RTSP



PoE

Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power: ≤ 200 W

Standard: IEEE 802.3 af/at



Auxiliary Interface

Serial Interface: 2 RS-485 (half-duplex), 1 RS-232

SATA: 4 SATA interfaces

eSATA :1 eSATA interface

Capacity: Up to 16 TB capacity for each disk

Alarm In/Out16/9

USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Ctrl 12V

Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

DC 12V12 VDC, 1 A power output



General

GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew

Power Supply: 100 to 240 VAC, 50 to 60 Hz

Consumption: ≤ 30 W (without HDD and PoE off)

Working Temperature: -10° C to 55° C (14° F to 131° F)

Working Humidity: 10% to 90%

Chassis: 19-inch rack-mounted 1.5U chassis

Dimension (W × D × H): 440 × 391 × 75 mm ( 17.3″× 15.4″ × 3.0″)

Weigh: t≤ 3.6 kg (without HDD, 7.9 lb.)



Certification

Obtained Certification: CE, CB, REACH, WEEE, UKCA, LOA

CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
