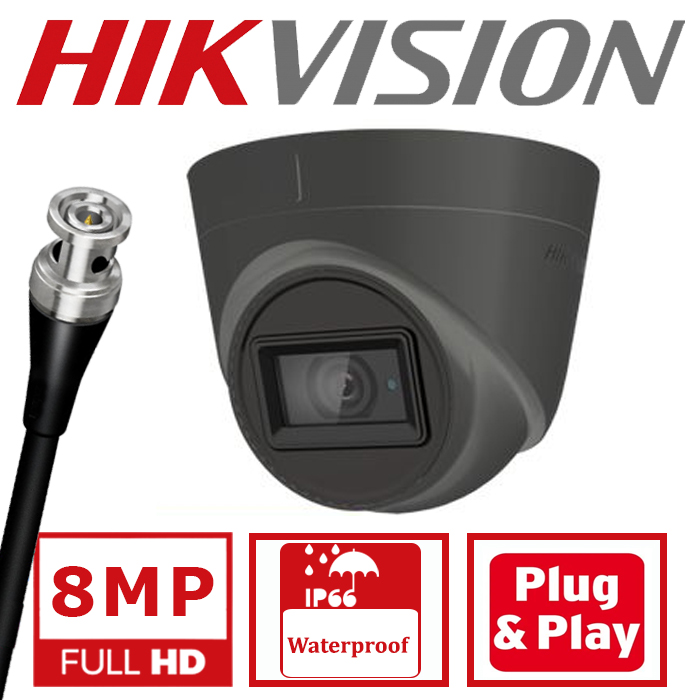

HIKVISION TVI 8MP 60M IR CAMERA DS-2CE78U1T-IT3FG(2.8mm) GREY

LENS	2.8mm Fixed lens
MANUFACTURER	Hikvision
MEGAPIXEL	8MP
PRODUCT TYPE	Camera

Camera

Image Sensor: 8.29 megapixel progressive scan CMOS

Max. Resolution: 3840 (H) × 2160 (V)

Min. Illumination: Color: 0.01 Lux@(F2.0 AGC ON), 0 Lux with IR

Shutter Time: PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s

Day & Night: IR Cut Filter

Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°

Signal System: PAL/NTSC



Lens

Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens

Focal Length & FOV: Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)

Lens Mount: M16



Illuminator

Supplement Light Type: IR

Supplement Light Range: Up to 60 m

Smart Supplement Light: Yes




Image Settings: AGC; Brightness; Sharpness

Frame Rate

TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI: 8MP@12.5fps, 8MP@15fps

AHD: 8M@12.5fps, 8M@15fps

CVBS: 960H P/N

Day/Night Mode: Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR): Digital WDR

Image Enhancement: HLC;BLC

Noise Reduction: 2D DNR

White Balance: Auto/Manual



Interface

Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analog output



General

Power

12 VDC ±25%

*You are recommended to use one power adapter to supply the power for one camera.

Max. 5.3 W

Material: Main body: Metal, Enclosure: Plastic

Dimension: Ø 109.82 mm × 91.03 mm (Ø 4.32″ × 3.6″ )

Weight: Approx. 320 g (0.71 lb.)

Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication: HIKVISION-C

Language: English



Approval

Protection: IP67
