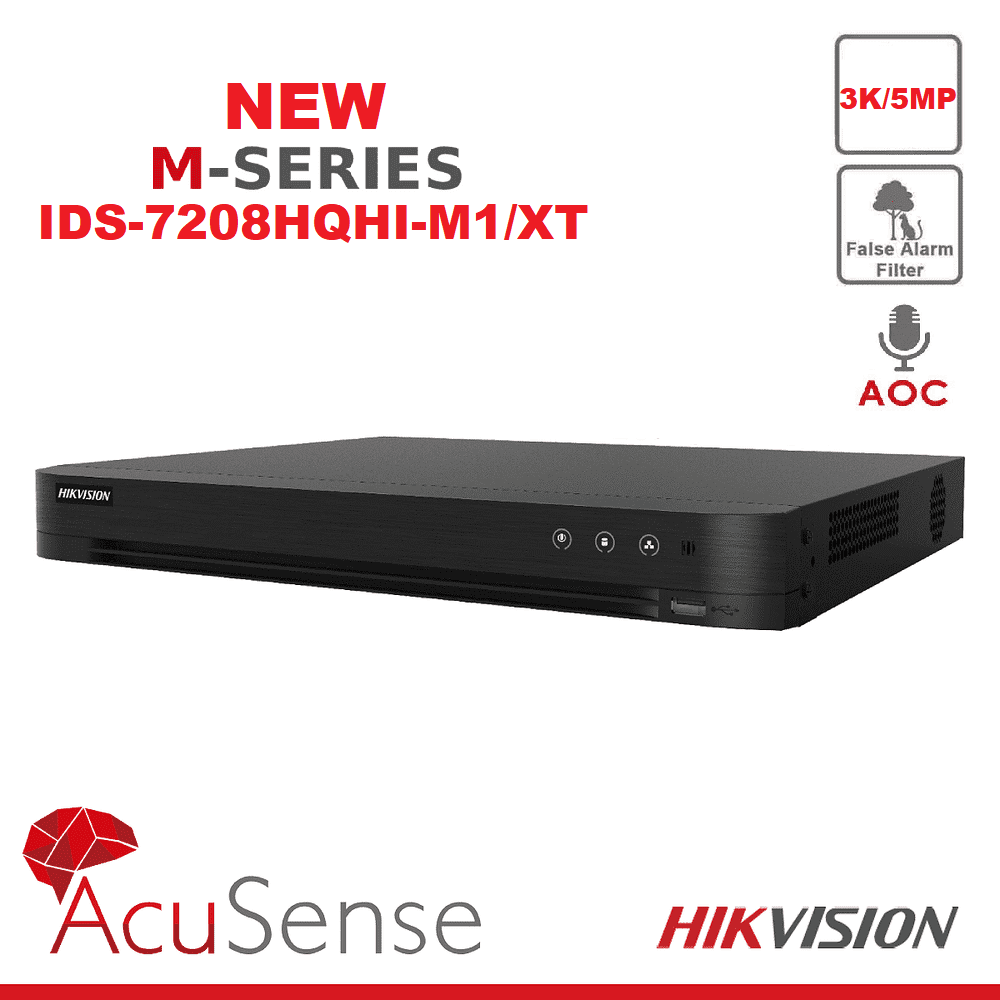

Hikvision 8CH 3K/5MP AOC ACUSENSE DVR IDS-7208HQHI-M1/XT

Hard Drive Size	NO HDD, 1 TB, 2 TB, 3 TB, 4 TB, 6 TB
CHANNEL	8CHANNEL
CODEC	H.265+
MEGAPIXEL	3K/5MP
PRODUCT TYPE	DVR
MANUFACTURER	HIKVISION

Facial Recognition

Face Picture Library: Up to 16 face picture libraries

Face Picture Comparison (Captured from Camera): Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)



Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;



Perimeter Protection

Human/Vehicle Analysis

Up to 4-ch

Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.



Video and Audio

IP Video Input

2-ch (up to 10-ch)

Enhanced IP mode on:

4-ch (up to 12-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Note: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details.

Analog Video Input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input: 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input: 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input: PAL/NTSC

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input

1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback: 8-ch



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate: 32 Kbps to 6 Mbps

Dual-stream: Support main stream or sub stream

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Network

Remote Connection: 64

Total Bandwidth: 96 Mbps

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface



Auxiliary Interface

Serial Interface: RS-485 (half-duplex)

SATA: 1 SATA interface, up to 10 TB capacity for each disk

Alarm In/Out: N/A (optional to support)

USB Interface

Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 2.0



General

Power Supply: 12 VDC, 1.5 A

Consumption: ≤ 18 W (without HDD)

Working Temperature: -10 °C to + 55 °C (14 °F to 131 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)

Weight: ≤ 1.78 kg (3.9 lb) (without HDD)
