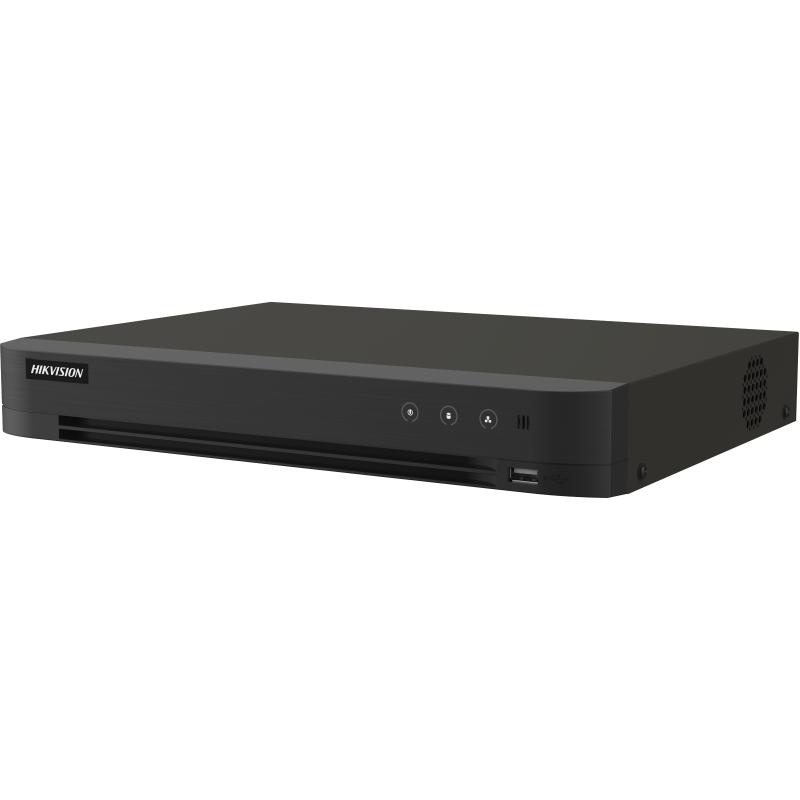

HIKVISION 8CH 8MP H.265 PRO DEEP LEARNING ACUSENSE DVR IDS-7208HUHI-M1/XT

PRODUCT TYPE	DVR
MEGAPIXEL	upto 8MP
CHANNEL	8 CHANNEL
MANUFACTURER	Hikvision

Facial Recognition

Face Picture Library

Up to 16 face picture libraries;

HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

Face Picture Comparison: 4-ch face picture comparison alarm (HD analog camera)



Perimeter Protection

Human/Vehicle Analysis: Up to 8-ch (advanced model)



Facial Detection

Facial Detection and Capture

Face picture detection, face picture search；

4-ch face picture capture



Video and Audio

IP Video Input

8-ch (up to 16-ch), each up to 4 Mbps

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz,

2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

CVBS Input: PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback: 8-ch

HDTVI Input: 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input: 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

HDCVI Input: 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/1080p/720p@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate: 32 Kbps to 10 Mbps

Dual-stream: Support main stream or sub stream

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Decoding

Decoding Capability: up to 24-ch 1080P@30fps



Network

Total Bandwidth: 256 Mbps

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Remote Connection: 64

Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface



Auxiliary Interface

SATA: 1 SATA interface

Capacity: up to 12 TB capacity for each disk

Serial Interface: RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 3.0

Alarm In/Out: N/A (optional to support)



General

Power Supply: 12 VDC, 2 A

Consumption: ≤ 10 W (without HDD)

Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)

Weight: ≤ 2 kg (4.4 lb)
