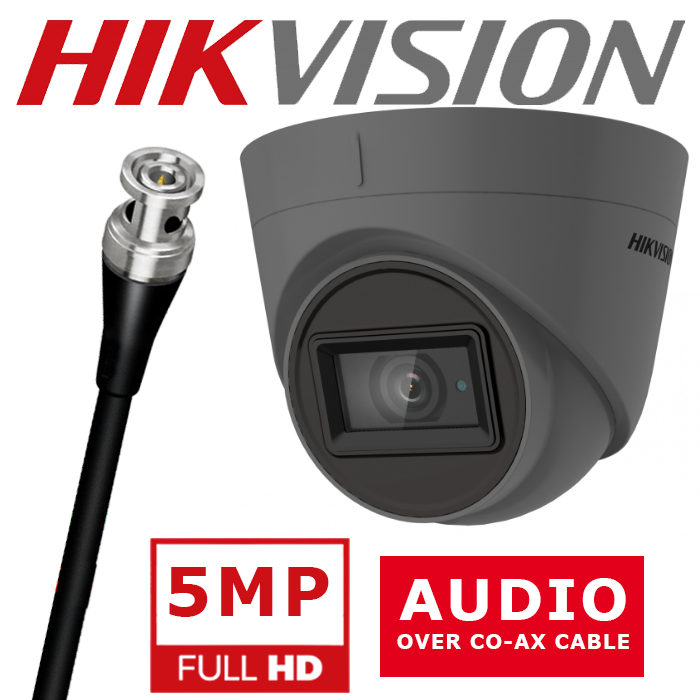

HIKVISION AUDIO 5MP TVI TURRET IR 40 CAMERA DS-2CE78H0T-IT3FS (2.8mm) Grey

Camera

Image Sensor: 5 MP CMOS

Max. Resolution: 2560 (H) × 1944 (V)

Min. Illumination: 0.01 Lux: @(F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night: ICR

Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°

Signal System: PAL/NTSC



Lens

Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°

3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°

6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°

Lens Mount: M12




Image Parameters Switch: STD/HIGH-SAT

Image Settings: Brightness, Sharpness, Mirror, Smart IR

Frame Rate

TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 4MP@30fps, 4MP@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

CVBS: PAL/NTSC

Day/Night Mode: Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR): Digital WDR

White Balance: ATW/MANUAL

AGC: Support



Interface

Video Output: Switchable TVI/AHD/CVI/CVBS



General

Material

Enclosure: Plastic

Main Body: Metal

Dimension: Φ 109.82 mm × 91.03 mm (Φ 4.32″ × 3.6″)

Weight: Approx. 300 g (0.66 lb.)

Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)

Communication: HIKVISION-C

Language: English

Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 3.7 W

IR Range: Up to 40 m



Approval

Protection: IP67
