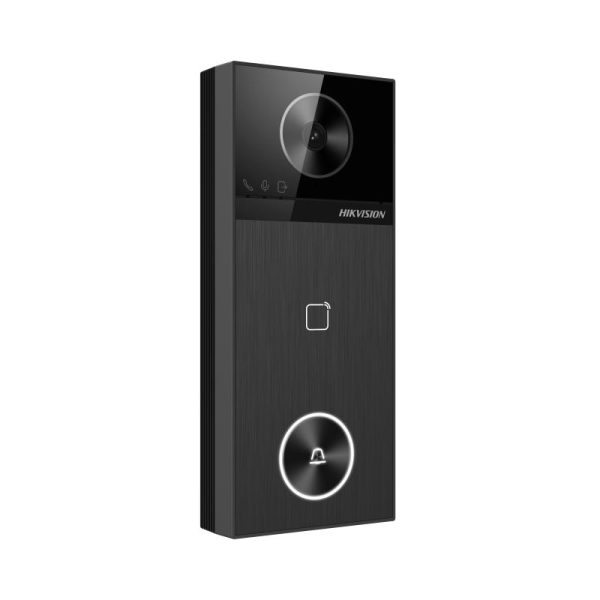

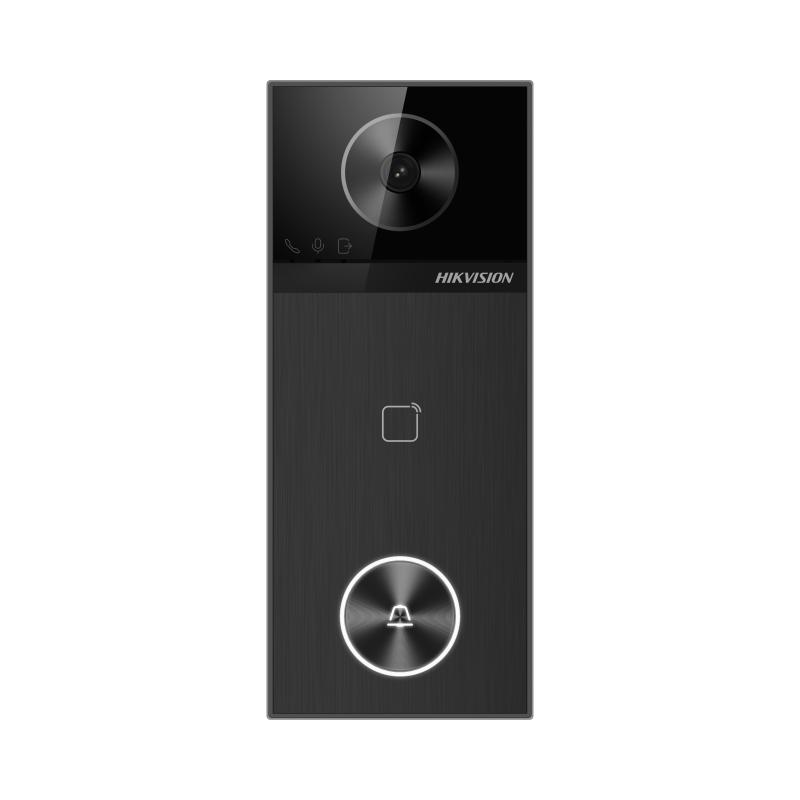

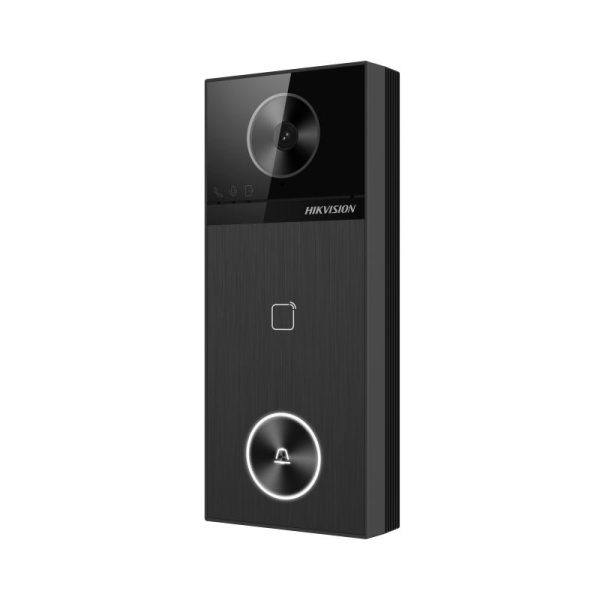

Hikvision Villa Door Station DS-KV6114-WBE1

System Parameters

Operation system: Linux

ROM: 4 GB

RAM: 512 MB

Processor: Embeded high performance processor



Video Parameters

Lens: 1

Resolution

Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P)

Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)

FOV: Horizontal: 150°; Vertical: 75°

Wide dynamic range (WDR): Support 120 dB

Supplement light: IR light, up to 3 m

Video compression standard: H.264; H.265; MJPEG



Audio Parameters

Audio input: 1 built-in omnidirectional microphone

Audio compression standard: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729

Audio output1 built-in loudspeaker

Audio compression bitrate: 8~64 Kps

Audio quality: Noise suppression and echo cancellation

Volume adjustment: Adjustable

Audio Performance: 50cm 80dB (Maximum: 50cm 83dB)

Audio Sample Rate: 16kHz、8kHz



Capacity

User capacity: 2000

Face capacity: No

Card capacity: 6000

Network parameters

Network protocol: TCP/IP, RTSP, ipv6, onvif

Wi-Fi: 2.4G

Bluetooth: Supported

3G/4G/

Wi-Fi Protocol: IEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax

Wi-Fi Type: WiFi 6



Authentication

Authentication mode: Card, Bluetooth, Hik-Connect, indoor station

Card type: M1 Card

Card reading frequency: 13.56 MHz

Card reading distance: M1card：2 to 2.5 cm

Application

Mobile APP: Hik-Connect

Motion Detection: Support

Playback: Support

Call Elevator: Support

Smart Features: Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)，Gunshot



Device Interfaces

Alarm input: 4, (include Exit button and Door contact input)

Network interface: 1 RJ-45, 10/100 Mbps self-adaptive

TAMPER: 1

Exit button: 1

RS-485: 1

USB: No

Wiegand: No

TF card: Support TF card, up to 128 G

Alarm output: No

Lock control: 2 relay, Max. 30 VDC 2 A

Door contact input: 1

Supported TF Format: FAT32;exFAT



General

Button: 1 physical button

Installation: Surface mounting

Indicator: 3

Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)

Protective level: IP65

Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)

Working humidity: 10% to 90% (no-condensing)

Dimension (W × H × D): 164 mm × 69 mm × 24.7 mm (6.46″ × 2.72″ × 0.97″)

Battery: No

Application environment: Outdoor

Power consumption: ＜ 10 W

Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish

Power supply: 12 VDC, 1.2 A,IEEE 802.3 at, standard PoE

Material

Front Shell and Rear Shell Material: Plastic

Viewing Window Panel Material: Glass

Power Supply Output: Max. 12 VDC, 1 A
