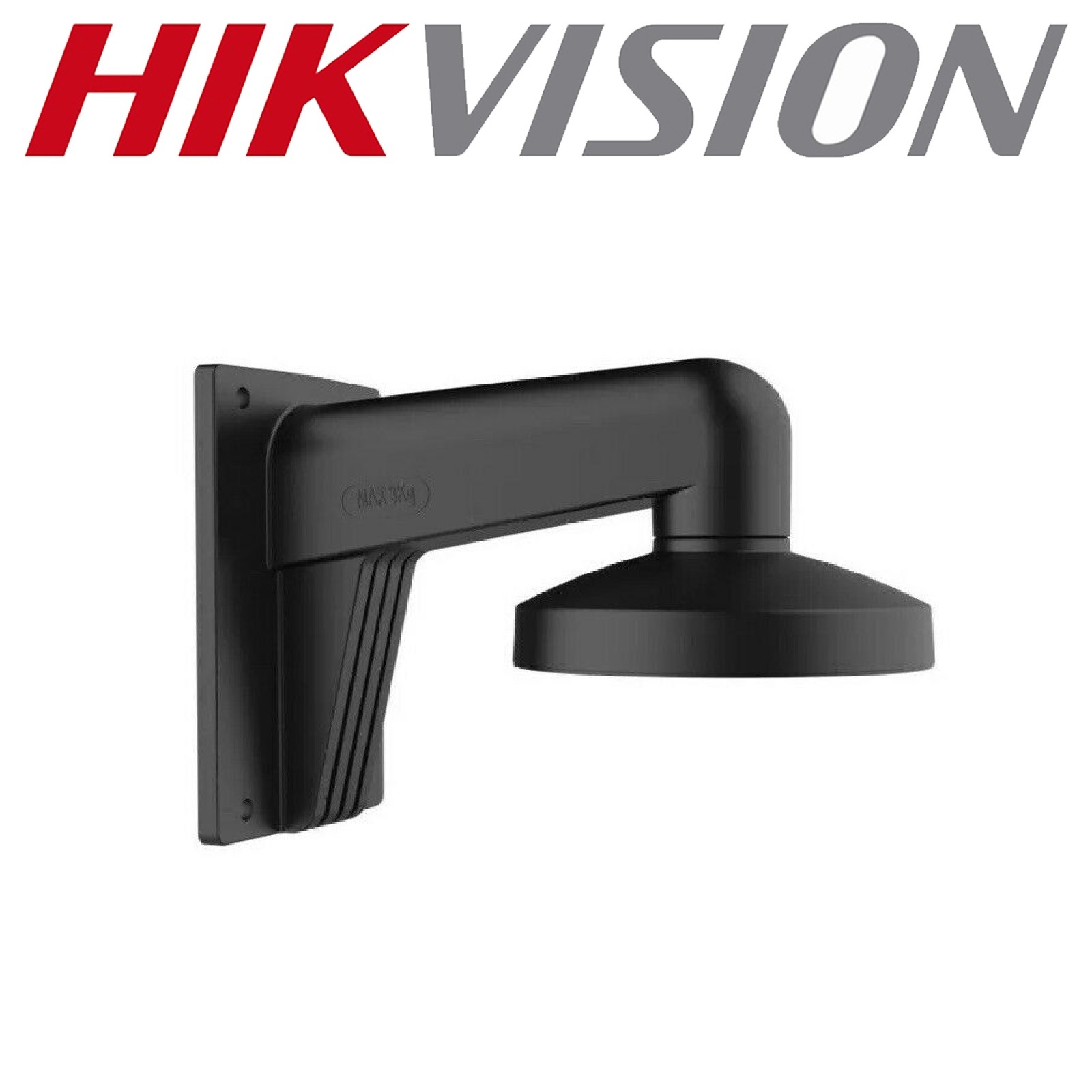

Hikvision Wall Mounting Bracket DS-1273ZJ-130-TRL Grey/Black

HikVision Junction Box for Dome Camera (DS-1273ZJ-130-TRLG)

Key Features

• Wall Mounting Bracket for Dome Camera (with adaptor plate)
• Appearance: Hikvision Grey/Black
• Material: Aluminum Alloy and Steel
• Better waterproof design
• Convenient installation with ring adapter below the cap

Technical Specifications

• Dimension: 132×183.5×228.5mm
• Weight: 870g
• Aluminum alloy material with surface spray treatment
• Good feature with the hole of cable entrance

Notes

• The junction box should be installed on the flat surface.
• The maximum load capacity of the bracket is 4.5KG
• The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mounting bracket.
• Pay attention to the color matching when select bracket
  .

Model Suitable

• DS-2CC52A2P-IT3, DS-2CC5X2P(N)-IR1(IR3),
• DS-2CC51X2P(N)-IR1(IR3), DS-2CD2312-I,DS-2CD2332-I
• DS-2CE5582P(N)-VFIR3,DS-2CE55A2P(N)-VFIR3,
• DS-2CE55C2P(N)-VFIR3, DS-2CC5282P-IT3,
• DS-2CC51X2P(N)-IR1T(IR3T),DS-2CC5182DP-IR1(IR3)

Download

Datasheet of Hikvision DS-1273ZJ-130-TRL
