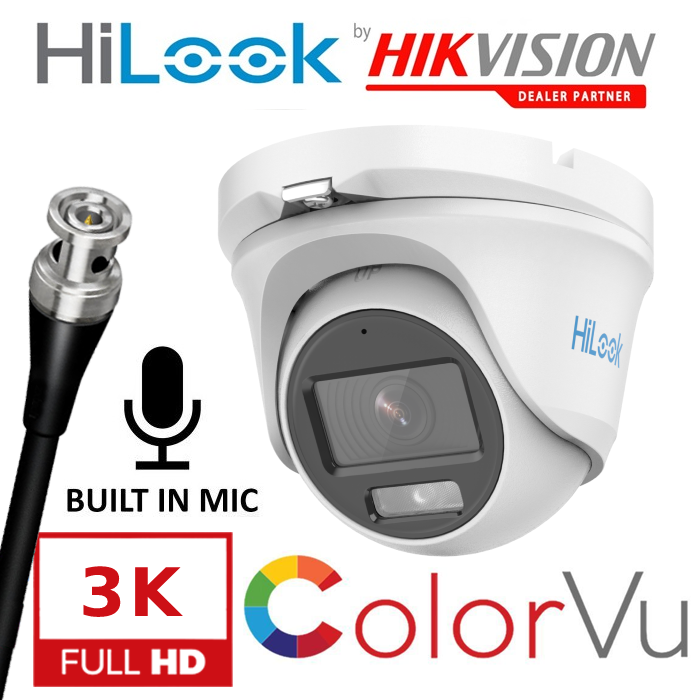

HILOOK 3K COLORVU CAMERA WITH MIC AOC THC-T159-MS

LENS	2.8mm Fixed lens
MANUFACTURER	Hilook
MEGAPIXEL	3K
PRODUCT TYPE	Camera, Colorvu Camera
Color	White

Camera

Image Sensor: 3K CMOS

Signal System: PAL/NTSC

Resolution: 2960 (H) × 1665 (V)

Frame Rate

TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps

AHD: 4 MP @ 25 fps/30 fps

CVI: 4 MP @ 25 fps/30 fps

CVBS: PAL/NTSC

Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens2.8 mm/3.6 mm fixed focal lens

Field of View

2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°

3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108°

Lens Mount: M12

Light Alarm: Solid Light Alarm (White Light)

Day & Night: 24/7 Color Imaging

WDR (Wide Dynamic Range): Digital WDR

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°




White Light: Auto Off

Image Mode: STD/HIGH-SAT/HIGHLIGHT

AGC: Yes

Day/Night Mode: Color

White Balance: Auto/Manual

AE (Auto Exposure) Mode: DWDR;BLC;HLC;Global

Noise Reduction: 2D DNR

Language: English

Function: Brightness; Sharpness; Anti-Banding

Lighting Mode: White Light



Interface

Video Output: Switchable TVI/AHD/CVI/CVBS



General

Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)

Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption: Max. 2.9 W

Protection Level: IP66

Material: Metal

White Light Range: Up to 20 m

Dimension: 82.65 mm × 91.0 mm × 69.16 mm (3.25″ ×3.58″ ×2.72″)

Weight: Approx. 243g (0.54 lb.)
