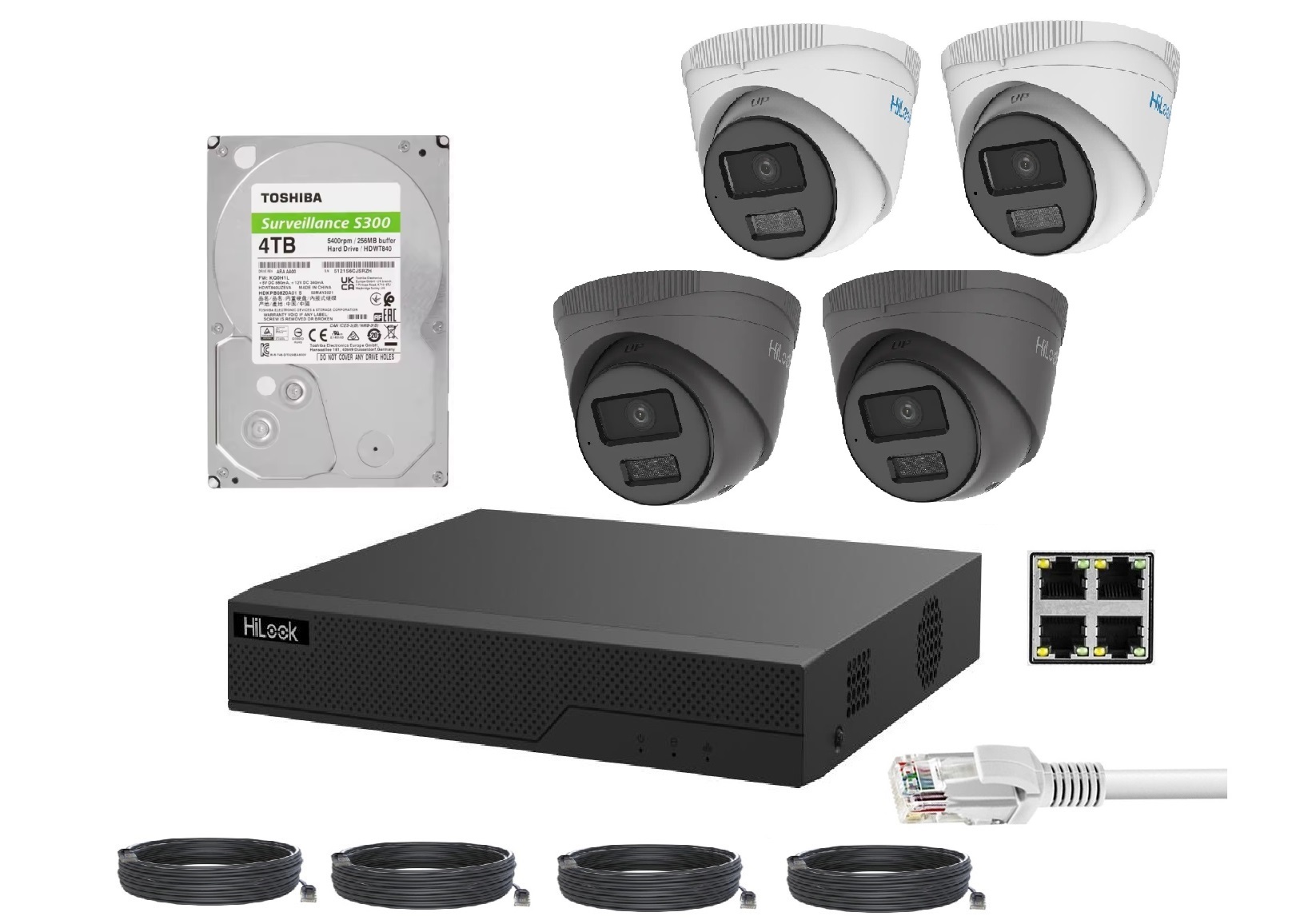

Hilook by Hikvision 4MP Smart Hybrid Color Audio IP PoE Camera Kits (1-4 Cameras White/Grey)

Hard Drive Size	NO HDD, 2 TB, 4 TB
No of Cameras	1, 2, 3, 4
Color	Grey, White

NVR

Video and Audio

IP Video Input: 4-ch

HDMI Output: HDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Input: 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz

Incoming Bandwidth: 40 Mbps

Outgoing Bandwidth: 80Mbps

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)



Decoding

Decoding Format: H.265+, H.265, H.264+, H.264, MPEG4

Decoding Capability: 1-ch @ 8 MP / 4-ch @ 1080p

Synchronous playback: 4-ch

Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF



Network

Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface



PoE

Interface: 4-ch

Power: ≤ 50 W

Standard: IEEE 802.3 af/at



RAID

RAID Type: No



Auxiliary Interface

SATA: 1

Capacity: Up to 8TB capacity for each disk

USB Interface: 2 × USB 2.0



General

Power Supply: 48 VDC, 1.35 A

Consumption: ≤ 10 W (without enabling PoE)

Working Temperature: -10 to +55° C (14 to 131° F)

Working Humidity: 10 to 90 %

Chassis: 1U

Dimension (W × D × H): 265 × 225 × 48 mm (10.2″ × 8.9″ × 1.9″)

Weight: ≤ 1 kg (2.2 lb)

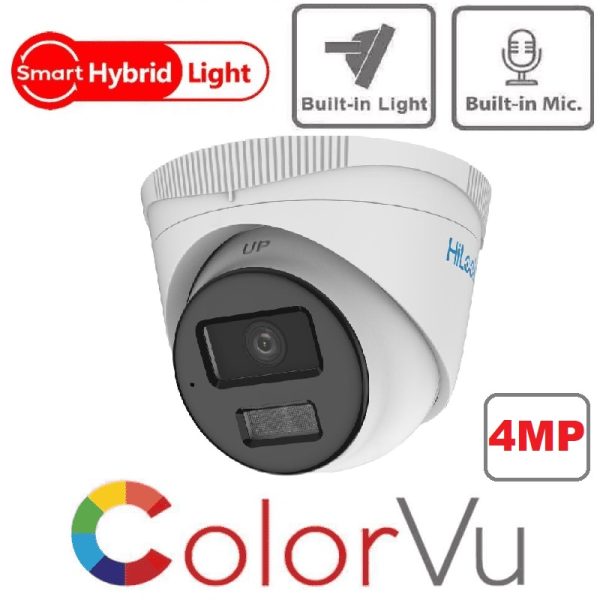

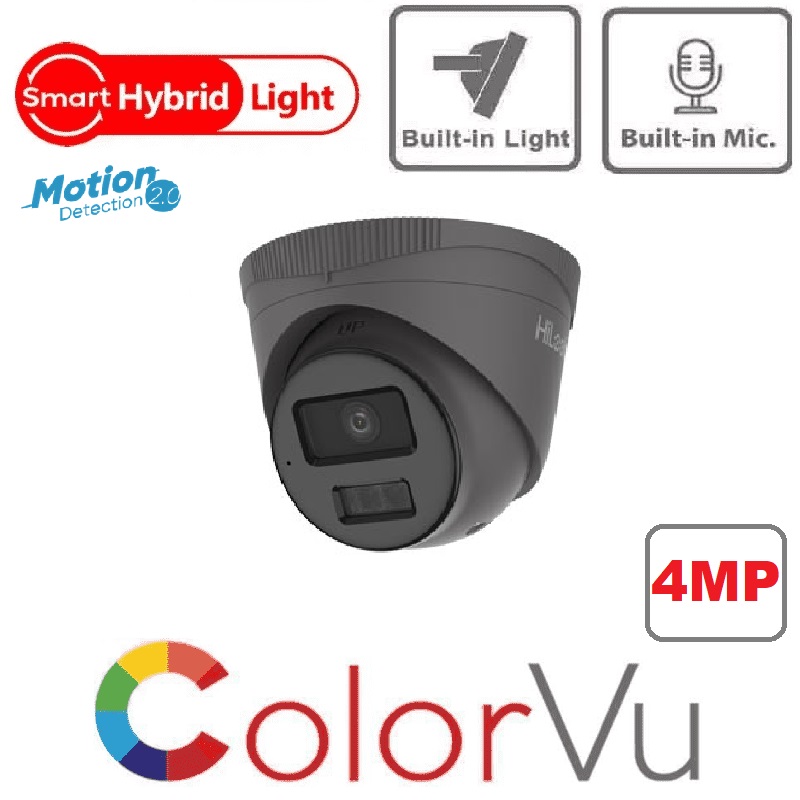

CAMERA

Camera

Image Sensor: 1/3″ Progressive Scan CMOS

Max. Resolution: 2560 × 1440

Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time: 1/3 s to 1/100,000 s

Day & Night: IR cut filter

Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°



Lens

Lens Type: Fixed focal lens 2.8

Focal Length & FOV

2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°

Lens Mount: M12

Iris Type: Fixed

Aperture: F1.0



DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m



Illuminator

Supplement Light Type: IR,White Light

Supplement Light Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm



Video

Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 8 Mbps

H.264 Type: Baseline Profile,Main Profile,High Profile

H.265 Type: Main Profile

Bit Rate Control: CBR,VBR

Scalable Video Coding (SVC): H.264 and H.265 encoding

Region of Interest (ROI): 1 fixed region for main stream



Audio

Audio Type: Mono sound

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate: 8 kHz/16 kHz

Environment Noise Filtering: Yes



Network

Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP

Simultaneous Live View: Up to 6 channels

API: Open Network Video Interface (Profile S, Profile T),ISAPI,SDK

Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client: iVMS-4200,HiLookVision

Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+




Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch: Day, Night, Auto, Schedule

Wide Dynamic Range (WDR): 120 dB

SNR: ≥ 52 dB

Image Enhancement: BLC,HLC,3D DNR

Privacy Mask: 4 programmable polygon privacy masks



Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone: Yes



Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage: Upload to FTP, notify surveillance center, send email, trigger capture



General

Power

12 VDC ± 25%, 0.5 A, max. 6.0 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W

Material: Metal & Plastic

DimensionØ112 mm × 82 mm (Ø4.41″ × 3.23″)

Package Dimension150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)

Weight: Approx. 375 g (0.8 lb.)

With Package Weight: Approx. 610 g (1.3 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language: English, Ukrainian

General Function: Heartbeat, anti-banding, mirror, password protection, password reset by email



Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

RCM: AS/NZS CISPR 32: 2015

IC: ICES-003: Issue 7

Safety

CB: IEC 62368-1: 2014+A11

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU

WEEE: 2012/19/EU

Reach: Regulation (EC) No 1907/2006

Protection: IP67: IEC 60529-2013
