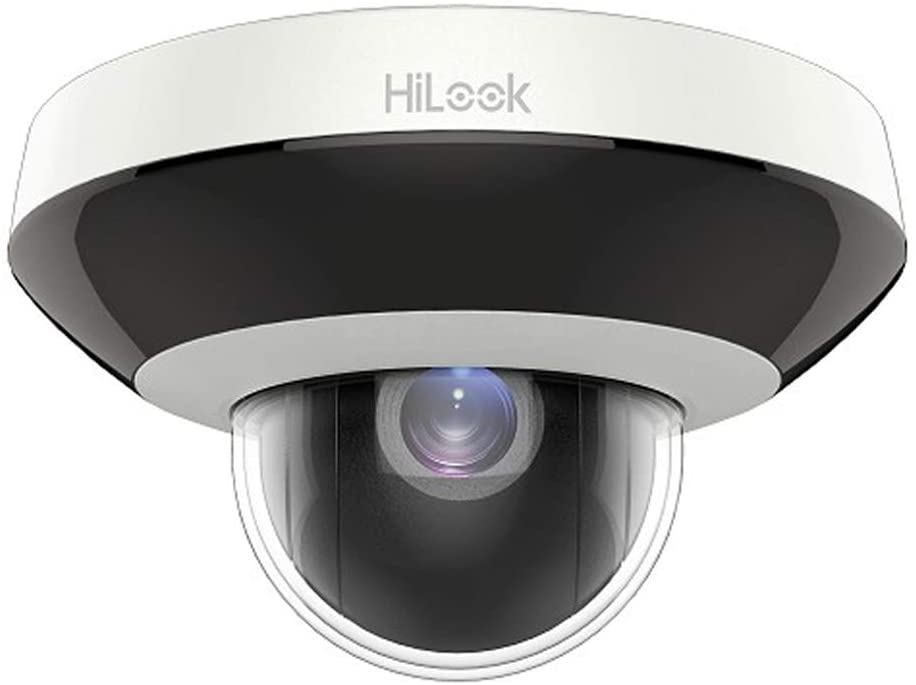

HILOOK IP PTZ 1080P CAMERA PTZ-N2204I-DE3

£ 94

Key Features

Two-inch 2 MP camera with pan, tilt and zoom (4x) ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Great night-time performance with up to 20 m enhanced IR
Water and dust resistant (IP66), and vandal proof (IK10)

50 in stock

Need help choosing, or want it installed? Call 0161 394 1262 or message us on WhatsApp.

SKU PTZ-N2204I-DE3 Categories HiLook CCTV, HiLook IP PTZ Tags hilook ip camera, hilook ip camera PTZ-N2204I-DE3, HILOOK IP PTZ 25 ZOOM CAMERA, Hilook PTZ-N2204I-DE3, PTZ-N2204I-DE3 Brand: Voltmax

HILOOK IP PTZ 15 ZOOM CAMERA PTZ-N4215I-DE

1/2.8″ progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
Up to 20 m IR distance
Focal Length of 2.8 mm to 12 mm, 4× optical zoom
120dB WDR, 3D DNR, HLC, BLC, Smart IR
12 VDC & PoE+ (802.3at, class4)
Support H.265+/H.265 video compression
Up to 24 programmable privacy masks
Support ROI
Support smart detection

Smart Features
Basic Event Detection		Motion Detection, Video Tampering Detection, Exception
Smart Detection		Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
Smart Record		ANR (Automatic Network Replenishment), Dual-VCA
ROI		Main stream, sub-stream, and third stream respectively support two fixed areas.
Camera
Image Sensor:		1/2.8″ Progressive Scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Gain		Auto/Manual
Shutter Time		50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s/td>
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		1/1 s to 1/30,000 s
Day& Night:		IR Cut Filter
Digital Zoom:		16×
Privacy Masking:		24 privacy masks programmable
Auto Focus:		Auto / Semi-automatic / Manual
Lens
Focal Length:		2.8 mm to 12 mm, 4× optical zoom
Zoom Speed:		Approx. 2.4 s (optical lens, wide-tele)
FOV		Horizontal field of view: 109° to 34° (Wide-Tele),Vertical field of view: 57° to 19° (Wide-Tele),Diagonal field of view: 135° to 39° (Wide-Tele)
Minimum Working Distance:		10 mm to 1500 mm (wide-tele)
Aperture Range:		F1.6 to F2.7
Image Enhancement		3D DNR, HLC, EIS, Regional Exposure, Regional Focus
Sub-Stream		50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution		1920 × 1080
Main Stream		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream		50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Pan & Tilt
Pan Range:		0° to 330°
Pan Speed:		Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range:		From 0° to 90°
Tilt Speed:		Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Proportional Zoom:		Support
Number of Preset:		300
Power-Off Memory		Support
Compression Standard
Max. Resolution		2560 × 1920
Main Stream		50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720) 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Sub Stream		50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
H.265+		Support
H.264+		Support
H.264 Type		Baseline Profile/Main Profile/High Profile
H.265 Type		Main Profile
Audio Compression		Main Profile
Video Compression		Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
Audio Compression		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate		64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVC		Support
Video Bit Rate		32 Kbps to 8 Mbps
Interface
Audio Input		1-ch audio input (line in)
Audio Output		1-ch audio output (line out)
Network Interface		1 RJ45 10 M/100 M Ethernet, PoE
Supplement Light
IR Distance		20 m
Smart IR		Support
Network
Security Measures		User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network Storage		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API		Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
Simultaneous Live View		Up to 20 channels
Client		iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser		IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
User/Host Level:		Up to 32 users,3 levels: Administrator, Operator and User
General
Menu Language:		English
Power Supply:		12 VDC &POE (802.3at,class4)
Power Consumption:		12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
Working Temperature/Humidity:		-20°C to 60°C (-4°F to 140°F) Working Humidity: ≤ 90%
Protection Level:		IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions:		Φ 130.7 mm × 101.7 mm (Φ 5.15″ × 4.00″)
Weight (approx.):		Approx. 0.53 kg (1.17 lb)

Download

User Manual Hikvision Hilook PTZ-N2204I-DE3

Quick Start Guide Hikvision Hilook PTZ-N2204I-DE3

Datasheet of Hikvision Hilook PTZ-N2204I-DE3

Key Features

Two-inch 2 MP camera with pan, tilt and zoom (4x) ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Great night-time performance with up to 20 m enhanced IR
Water and dust resistant (IP66), and vandal proof (IK10)

CODEC	H.265+
LENS	2.8mm Fixed lens
MANUFACTURER	Hilook
MEGAPIXEL	5MP
PRODUCT TYPE	IP Camera, PTZ Camera

Description

HILOOK IP PTZ 15 ZOOM CAMERA PTZ-N4215I-DE

1/2.8″ progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
Up to 20 m IR distance
Focal Length of 2.8 mm to 12 mm, 4× optical zoom
120dB WDR, 3D DNR, HLC, BLC, Smart IR
12 VDC & PoE+ (802.3at, class4)
Support H.265+/H.265 video compression
Up to 24 programmable privacy masks
Support ROI
Support smart detection

Smart Features
Basic Event Detection		Motion Detection, Video Tampering Detection, Exception
Smart Detection		Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
Smart Record		ANR (Automatic Network Replenishment), Dual-VCA
ROI		Main stream, sub-stream, and third stream respectively support two fixed areas.
Camera
Image Sensor:		1/2.8″ Progressive Scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Gain		Auto/Manual
Shutter Time		50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s/td>
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		1/1 s to 1/30,000 s
Day& Night:		IR Cut Filter
Digital Zoom:		16×
Privacy Masking:		24 privacy masks programmable
Auto Focus:		Auto / Semi-automatic / Manual
Lens
Focal Length:		2.8 mm to 12 mm, 4× optical zoom
Zoom Speed:		Approx. 2.4 s (optical lens, wide-tele)
FOV		Horizontal field of view: 109° to 34° (Wide-Tele),Vertical field of view: 57° to 19° (Wide-Tele),Diagonal field of view: 135° to 39° (Wide-Tele)
Minimum Working Distance:		10 mm to 1500 mm (wide-tele)
Aperture Range:		F1.6 to F2.7
Image Enhancement		3D DNR, HLC, EIS, Regional Exposure, Regional Focus
Sub-Stream		50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution		1920 × 1080
Main Stream		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream		50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Pan & Tilt
Pan Range:		0° to 330°
Pan Speed:		Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range:		From 0° to 90°
Tilt Speed:		Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Proportional Zoom:		Support
Number of Preset:		300
Power-Off Memory		Support
Compression Standard
Max. Resolution		2560 × 1920
Main Stream		50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720) 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Sub Stream		50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
H.265+		Support
H.264+		Support
H.264 Type		Baseline Profile/Main Profile/High Profile
H.265 Type		Main Profile
Audio Compression		Main Profile
Video Compression		Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
Audio Compression		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate		64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVC		Support
Video Bit Rate		32 Kbps to 8 Mbps
Interface
Audio Input		1-ch audio input (line in)
Audio Output		1-ch audio output (line out)
Network Interface		1 RJ45 10 M/100 M Ethernet, PoE
Supplement Light
IR Distance		20 m
Smart IR		Support
Network
Security Measures		User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network Storage		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API		Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
Simultaneous Live View		Up to 20 channels
Client		iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser		IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
User/Host Level:		Up to 32 users,3 levels: Administrator, Operator and User
General
Menu Language:		English
Power Supply:		12 VDC &POE (802.3at,class4)
Power Consumption:		12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
Working Temperature/Humidity:		-20°C to 60°C (-4°F to 140°F) Working Humidity: ≤ 90%
Protection Level:		IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions:		Φ 130.7 mm × 101.7 mm (Φ 5.15″ × 4.00″)
Weight (approx.):		Approx. 0.53 kg (1.17 lb)
