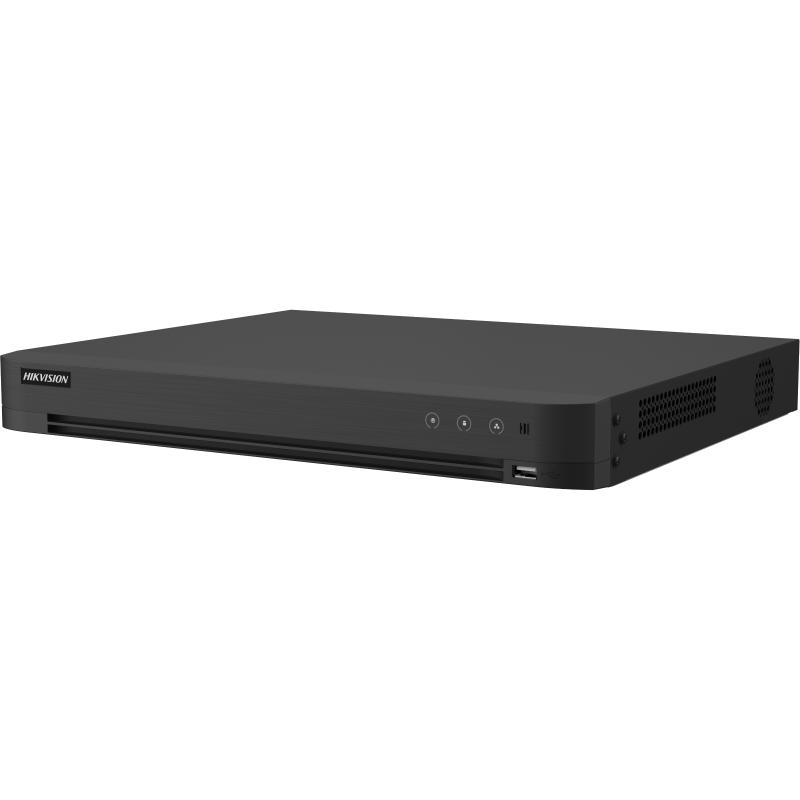

HIKVISION 16-CH POC DVR 8MP H.265 ACUSENSE (iDS-7216HUHI-M2/PXT)

CHANNEL	16 CHANNEL

Facial Recognition

Face Picture Library

Up to 16 face picture libraries

HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

Face Picture Comparison (Captured from Camera): 4-ch face picture comparison alarm (HD analog camera)



Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels.

It can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.

Quick search by object or event type is supported.



Perimeter Protection

Human/Vehicle Analysis: Up to 8-ch (advanced model)



Facial Detection

Facial Detection and Capture

Face picture detection, face picture search

4-ch face picture capture



Video and Audio

IP Video Input: 16-ch (up to 32-ch), each up to 8MP

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

PoC Camera Input: Support Hikvision PoC camera

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz,

2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI/VGA simultaneous output

CVBS Input: PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

Resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous playback: 16-ch

HDTVI Input: 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input: 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

HDCVI Input: 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Audio Input: 4-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate: 32 Kbps to 10 Mbps

Dual-stream: Support main stream or sub stream

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Decoding

Decoding Capability: up to 24-ch 1080P@30fps



Network

Total Bandwidth: 256 Mbps

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Remote Connection: 128

Network Interface

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface



Auxiliary Interface

SATA: 2 SATA interfaces

Capacity: Up to 12 TB capacity for each disk

Serial Interface: RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0

Rear panel: 2 × USB 3.0

Alarm In/Out: 4/1



General

Power Supply: 100 to 240 VAC, 50 to 60 Hz

Consumption: ≤ 20 W (without HDD)

Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)

≤ 2.1 kg (4.6 lb)
