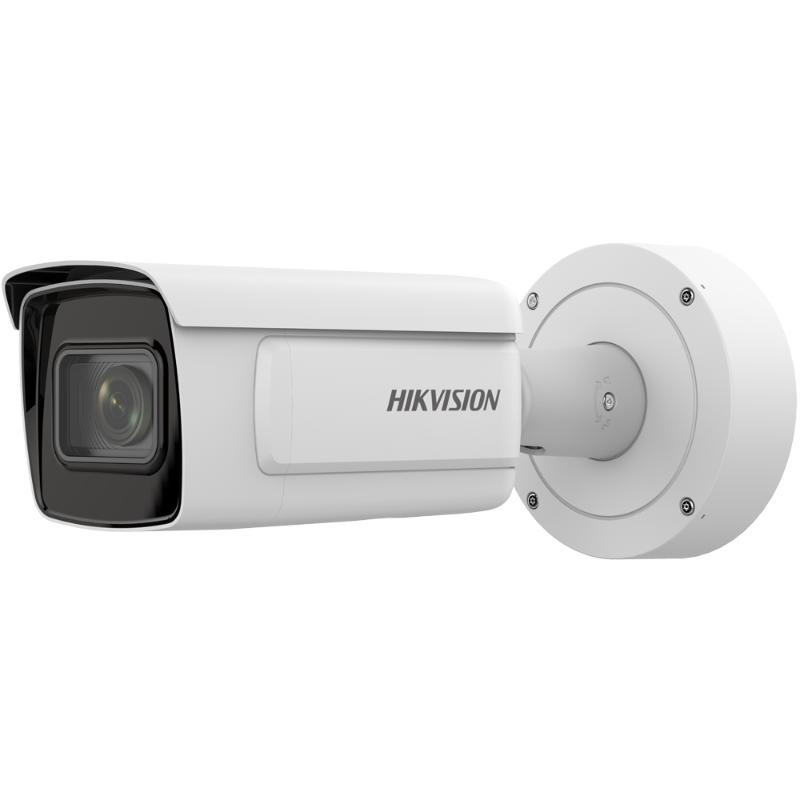

Hikvision 2MP DeepinView ANPR Moto Varifocal Bullet Camera 2.8-12mm IDS-2CD7A26G0/P-IZHSY

Camera

Image Sensor: 1/1.8″ Progressive Scan CMOS

Max. Resolution: 1920 × 1080

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON);

B/W: 0.0001 Lux @ (F1.2, AGC ON)，0 Lux with IR

Shutter Time: 1 s to 1/100,000 s

Day & Night

IR cut filter

Blue glass module to reduce ghost phenomenon



Lens

Focal Length & FOV

2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

Focus: Auto, semi-auto, manual

Iris Type: P-iris

Aperture

2.8 to 12 mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73



Illuminator

Supplement Light Type: IR

Supplement Light Range

2.8 to 12 mm: 50 m

8 to 32 mm: 100 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm



Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream/Third stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 8 Mbps

H.264 Type: Baseline Profile/Main Profile/High Profile

H.265 Type: Main Profile

Bit Rate Control: CBR/VBR

Scalable Video Coding (SVC): H.265 and H.264 encoding

Region of Interest (ROI): 4 fixed regions for each stream

Target Cropping: Yes



Audio

Audio Type: Mono sound

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3

Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3)

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Environment Noise Filtering: Yes



Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Simultaneous Live View: Up to 20 channels

API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

User/Host: Up to 32 users. 3 user levels: administrator, operator and user

Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client: iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

Local service: Chrome 41.0+, Firefox 30.0+




Image Parameters Switch: Yes

Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger

Wide Dynamic Range (WDR): 140 dB

SNR: ≥ 52 dB

Image Enhancement: BLC, HLC, Defog, 3D DNR

Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Stabilization: EIS



Interface

Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB

Audio: 1 input (line in), 1 output (line out), 3.5 mm connector

Alarm: 2 input, 2 outputs (max. 24 VDC, 1 A)

RS-485: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key: Yes

Power Output: 12 VDC, max. 100 mA

Wiegand: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)



Event

Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection

Smart Event

Intrusion detection, scene change detection, audio exception detection, defocus detection

Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable

Region entrance detection, up to 4 regions configurable

Region exiting detection, up to 4 regions configurable

Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture



Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types

Road Traffic and Vehicle Detection

Blocklist and allowlist: up to 10,000 records

Captures vehicle that has no license plate

Metadata: Metadata of road traffic is supported.



General

Power

12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block

PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W

Dimension: Ø140 × 351 mm (Ø5.5″ × 13.8″)

Package Dimension: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)

Approx. 1950 g (4.2 lb.)

With Package Weight: Approx. 3070 g (6.7 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian

General Function: Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Heater: Yes



Approval

EMC

FCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC (ICES-003: Issue 7);

KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1);

CB (IEC 62368-1:2014+A11);

CE-LVD (EN 62368-1:2014/A11:2017);

BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

Protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Anti-Corrosion Protection: NEMA 4X(NEMA 250-2018)

Automotive and Railway: EN50121-4

Other: PVC FREE
