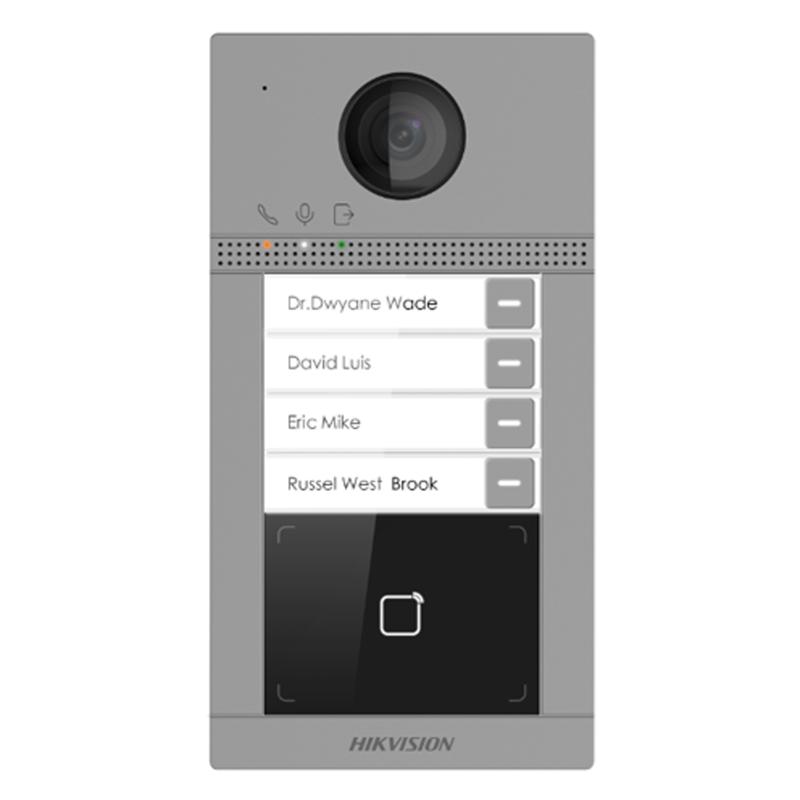

HIKVISION 4 BUTTON METAL VILLA DOOR STATION 2MP DS-KV8413-WME1(B)

Video Parameters

• Supplement light: IR supplement
• Lens: 1
• FOV Horizontal: 129° Vertical: 75°

Pixel

• Main stream: 1920 × 1080
• Sub stream: 720 × 480

Audio Parameters

Audio quality: Noise suppression and echo cancellation

Network Parameters

• Communication protocol
• TCP/IP, RSTP
• Wired network: 10/100 Mbps self-adaptive Ethernet
• Wi-Fi : /
• Bluetooth: N/A

Device Interfaces

• Network interface: 1
• Exit button: 2
• Lock control: 2
• Door contact input: 2
• Power interface: 1

General

• Button: 4
• Installation
• Surface Mounting
• Indicator: 3
• Weight: 385g
• Protective level: IP65, IK08
• Power supply method
• IEEE802.3af, standard PoE
• 12 VDC
• Working temperature: -40° C to +55° C(-40° F to 131° F)
• Working humidity: 10% to 95%
• Dimensions: 174 mm × 91 mm × 29 mm
• Battery: N/A
• Application environment: Outdoor
• Power consumption: ＜ 10 W
• Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Slovak, Portuguese
