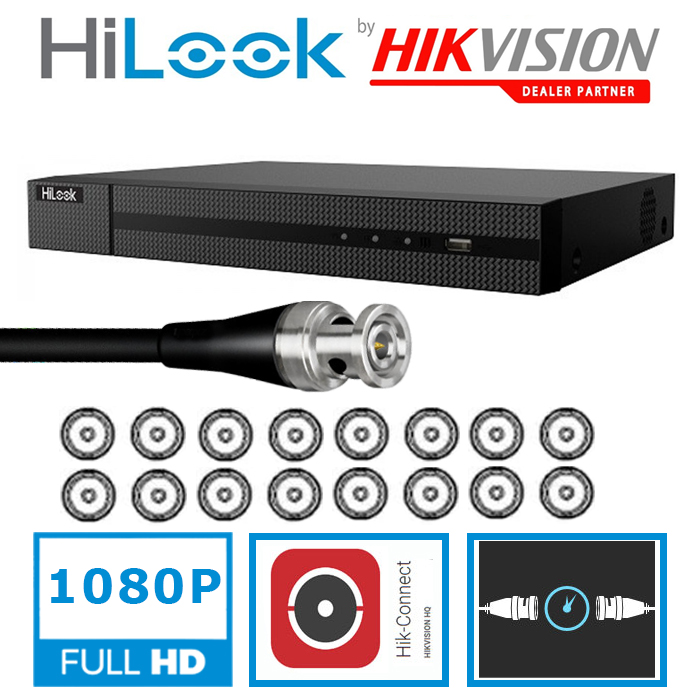

HILOOK 16 CHANNEL 2MP 1080P LITE DVR (DVR-216G-M1)

Hard Drive Size	NO HDD, 1 TB, 2 TB, 3 TB, 4 TB, 6 TB
CHANNEL	16CHANNEL
CODEC	H.264
MANUFACTURER	Hilook
MEGAPIXEL	2MP
PRODUCT TYPE	DVR

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;



Video and Audio

IP Video Input

2-ch (up to 18-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30

AHD Input: 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

CVBS Input: PAL/NTSC

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback: 16-ch



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate: 32 Kbps to 4 Mbps

Dual-stream: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Network

Total Bandwidth: 96 Mbps

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF

Remote Connection: 128

Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface



Auxiliary Interface

SATA: 1, SATA interface

Capacity: Up to 10 TB capacity for each disk

USB Interface: 2 × USB 2.0



General

Power Supply: 12 VDC, 1.6 A
