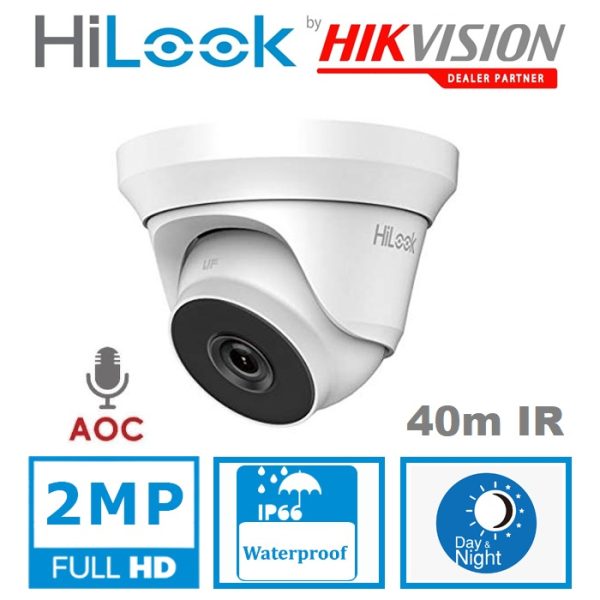

HILOOK 2MP AOC 40M IR TURRET CAMERA – WHITE THC-T220-MS

PRODUCT TYPE	Camera, AOC CAMERA
MEGAPIXEL	2MP
LENS	2.8mm Fixed lens
Color	White
IR RANGE	Up to 40m
Manufacturer	Hilook

Camera

Image Sensor: 2 MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Min. Illumination: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR

Shutter Time: PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s

Day & Night: IR Cut Filter

Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Signal System: PAL/NTSC



Lens

Lens Type: 2.8 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°

3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens Mount: M12



Illuminator

Supplement Light Type: IR

Supplement Light Range: Up to 40 m




Image Parameters Switch: STD/HIGH-SAT

Image Settings: Brightness;Sharpness;Mirror;Smart IR;AGC

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Day/Night Mode: Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR): Digital WDR

Image Enhancement: DWDR;BLC;HLC;Global

Noise Reduction: 2D DNR

White Balance: Auto/Manual



Interface

Video Output: Switchable TVI/AHD/CVI/CVBS

Built-in Microphone: Yes



General

Power: 12 VDC ± 25%, max. 3.7 W

Material: Metal

Dimension: Φ 127.92 mm × 100.15 mm (Φ 5.04″ × 4.03″)

Weight: Approx. 450 g (0.99 lb.)

Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Communication: HIKVISION-C

Language: English



Approval

Protection: IP66
