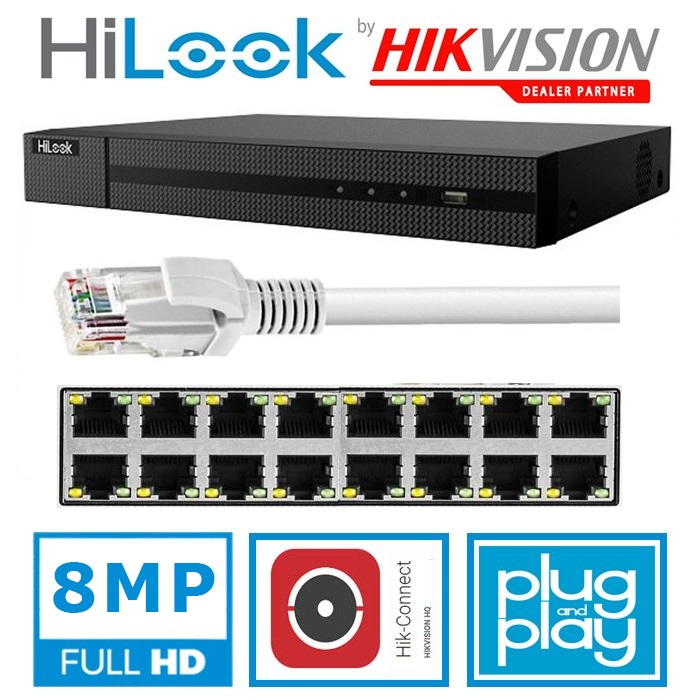

HILOOK NVR-216MH-C/16P NVR 16CH 4K POE

Hard Drive Size	NO HDD, 1 TB, 2 TB, 3 TB, 4 TB, 6 TB
CHANNEL	8CHANNEL
CODEC	H.265+
MANUFACTURER	Hilook
MEGAPIXEL	5MP
PRODUCT TYPE	NVR

Video and Audio

IP Video Input: 16-ch

HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Incoming Bandwidth: 160 Mbps

Outgoing Bandwidth: 80 Mbps

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)



Decoding

Decoding Format: H.265+,H.265,H.264+,H.264

Decoding Capability: 4-ch@1080p

Synchronous playback: 16-ch

Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF



Network

Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface



PoE

Interface: 16-ch

Power: ≤ 150W

Standard: IEEE 802.3 af/at



RAID

RAID Type: No



Auxiliary Interface

SATA: 2 SATA interfaces

Capacity: Up to 8TB capacity for each disk

USB Interface: 2 × USB 2.0



General

Power Supply: 100-240V～, 50/60Hz, 3.2A MAX

Consumption: ≤ 15W

Working Temperature: -10 to +55º C (+14 to +131º F)

Working Humidity: 10 to 90 %

Chassis: 1U chassis

Dimension (W × D × H): 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)

Weight: ≤ 2.6 kg (5.7 lb)
