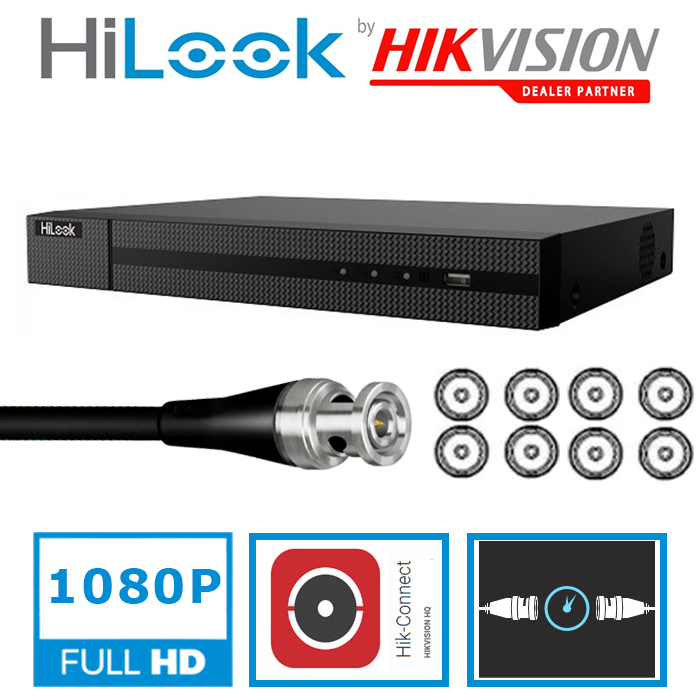

HILOOK 8CH 2MP DVR (DVR-208G-M1/T)

Hard Drive Size	NO HDD, 1 TB, 2 TB, 3 TB, 4 TB
CHANNEL	8CHANNEL
PRODUCT TYPE	DVR
CODEC	H.264
MEGAPIXEL	2MP
MANUFACTURER	HILOOK

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;



Video and Audio

IP Video Input

2-ch (up to 10-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30

AHD Input: 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

CVBS Input: Support

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Input

1-ch RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: Reuse the first audio input

Synchronous playback: 8-ch



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate: 32 Kbps to 4 Mbps

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Network

Total Bandwidth: 72 Mbps

Remote Connection: 64

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface



Auxiliary Interface

SATA: 1 SATA interface

Capacity: Up to 4 TB capacity for each disk

USB Interface: Rear panel: 2 × USB 2.0

Alarm In/Out: N/A



General

Power Supply: 12 VDC, 1.5 A

Consumption: ≤ 17 W (without HDD)

Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight: ≤ 1 kg (without HDD, 2.2 lb.)
