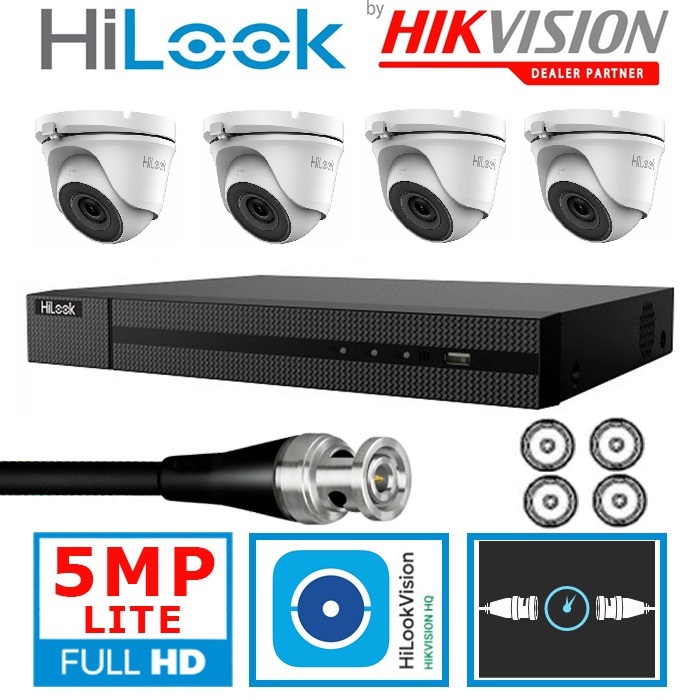

Hilook by Hikvision 4 Channel 5MP Lite Kit DVR 204Q-M1+ 4X THC-T150-MS White

Hilook by Hikvision 4 Channel 5MP Lite Kit DVR 204Q-M1+ 4X THC-T150-MS White

Price range: £ 179 through £ 328

Need help choosing, or want it installed? Call 0161 394 1262 or message us on WhatsApp.

SKU 204Q-4TA150 Categories , Tags , , , , , , , Brand:

DVR Recorder Features:

4-in-1 CCTV is a new hybrid format, allowing HD-TVI, AHD, HD-CVI and CVBS  cameras to be connected to the DVR. This means you no longer have to  worry about format compatibility when setting up or updating a CCTV  security system

This HilLook DVR has capacity for 1 Hard Drive up to 6TB for storage and  uses H.264 + video compression which improves encoding efficiency and  reduces data storage costs.

  •  Connectable to Turbo HD/HDCVI/AHD/CVBS signal input  One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs  HDMI/VGA output at up to 2560 (H) × 1944 (V) resolution  4-ch synchronous playback
  •  Smart search for efficient playback
  • One SATA interface (up to 6 TB capacity per HDD)
  • Supports real-time 1080p Lite and when enabled, the image effect is similar with 1080p
  • Long distance transmission over UTP and coaxial cable

CCTV Camera Features:

  •  5MP Lite camera White
  • Smart IR: up to 20 m IR distance
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Our intelligent security kit included:(ONLY FULL KIT):

  • 1X 4CH DVR Recorder , DVR-204Q-KI
  • 4X Color Camera 5MP THC-T150-M White
  • 4X 20m BNC Cable
  • 1X Power Adapter
  • 1X 4 Way Power Splitter
  • 1× Mouse
  •  1× User’s manual

DVR SPECIFICATION:

DVR 204Q-K1 (LITE)

Video/Audio Input
Audio Input: 1-ch
Video Compression: H.265+/H.265/H.264+/H.264
Analog Video Input: 4-ch
Analog and HD-TVI video input: Support HDTVI input: 4MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1
Supported camera types: Support AHD input: 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input: PAL/NTSC
IP Video Input: 1-ch
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Frame Rate: Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p….@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/…@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA…@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps-6 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1kΩ)
Dual Stream: Support
Synchronous Playback: 4-ch
Network management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk
External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
General
Power Supply: 12 VDC
Consumption: ≤ 8 W
Working Temperature: -10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity: 10% to 90%
Dimensions: 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight: ≤ 1 kg (2.2 lb)

Camera SPECIFICATION:

Camera
Image Sensor: 5 MP CMOS image sensor
Signal System: PAL/NTSC
Effective Pixels: 2560 (H) × 1944 (V)
Shutter Time: 1/25 s to 1/50,000 s
Lens Mount: M12
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
General
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Weather Proof: IP66
IR Range: Up to 20m
Dimension:  85.4 mm × 76mm
Hard Drive Size NO HDD, 1 TB, 2 TB, 3 TB, 4 TB
DVR Recorder Features:
4-in-1 CCTV is a new hybrid format, allowing HD-TVI, AHD, HD-CVI and CVBS  cameras to be connected to the DVR. This means you no longer have to  worry about format compatibility when setting up or updating a CCTV  security system This HilLook DVR has capacity for 1 Hard Drive up to 6TB for storage and  uses H.264 + video compression which improves encoding efficiency and  reduces data storage costs.
  •  Connectable to Turbo HD/HDCVI/AHD/CVBS signal input  One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs  HDMI/VGA output at up to 2560 (H) × 1944 (V) resolution  4-ch synchronous playback
  •  Smart search for efficient playback
  • One SATA interface (up to 6 TB capacity per HDD)
  • Supports real-time 1080p Lite and when enabled, the image effect is similar with 1080p
  • Long distance transmission over UTP and coaxial cable
CCTV Camera Features:
  •  5MP Lite camera White
  • Smart IR: up to 20 m IR distance
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Our intelligent security kit included:(ONLY FULL KIT):
  • 1X 4CH DVR Recorder , DVR-204Q-KI
  • 4X Color Camera 5MP THC-T150-M White
  • 4X 20m BNC Cable
  • 1X Power Adapter
  • 1X 4 Way Power Splitter
  • 1× Mouse
  •  1× User’s manual

DVR SPECIFICATION:

DVR 204Q-K1 (LITE)
Video/Audio Input
Audio Input: 1-ch
Video Compression: H.265+/H.265/H.264+/H.264
Analog Video Input: 4-ch
Analog and HD-TVI video input: Support HDTVI input: 4MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1
Supported camera types: Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input: PAL/NTSC
IP Video Input: 1-ch
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Frame Rate: Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p….@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/…@25fps (P)/30fps (N) For 720p stream access: 720p/VGA…@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps-6 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1kΩ)
Dual Stream: Support
Synchronous Playback: 4-ch
Network management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk
External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
General
Power Supply: 12 VDC
Consumption: ≤ 8 W
Working Temperature: -10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity: 10% to 90%
Dimensions: 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight: ≤ 1 kg (2.2 lb)

Camera SPECIFICATION:

Camera
Image Sensor: 5 MP CMOS image sensor
Signal System: PAL/NTSC
Effective Pixels: 2560 (H) × 1944 (V)
Shutter Time: 1/25 s to 1/50,000 s
Lens Mount: M12
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
General
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Weather Proof: IP66
IR Range: Up to 20m
Dimension:  85.4 mm × 76mm
Hard Drive Size NO HDD, 1 TB, 2 TB, 3 TB, 4 TB
