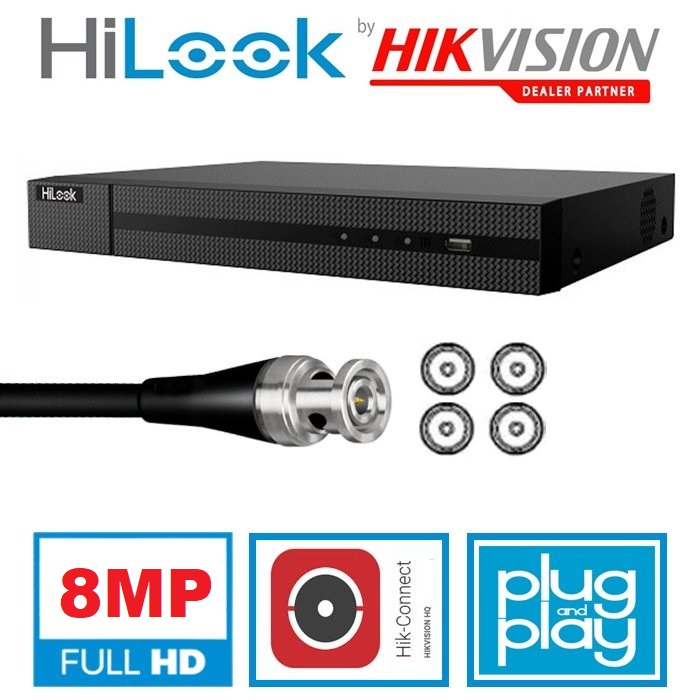

HILOOK DVR 4 CHANNEL 8MP DVR-204U-M1

Hard Drive Size	NO HDD, 1 TB, 2 TB, 3 TB, 4 TB, 6 TB
CHANNEL	4 CHANNEL
CODEC	H.265+
MEGAPIXEL	8MP
PRODUCT TYPE	DVR
MANUFACTURER	HILOOK HIKVISION

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;



Video and Audio

IP Video Input

2-ch (up to 6-ch)

Enhanced IP mode on:

4-ch (up to 8-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input: 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input: 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input: PAL/NTSC

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback: 4-ch



Recording

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate: 32 Kbps to 10 Mbps

Dual-stream: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps



Network

Total Bandwidth: 96 Mbps

Remote Connection: 32

Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interfac

Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface



Auxiliary Interface

SATA: 1 SATA interface

Capacity: Up to 10 TB capacity for each disk

Alarm In/Out: N/A

USB Interface: 2 × USB 2.0



General

Power Supply: 12 VDC, 1.5 A

Consumption: ≤ 15 W (without HDD)

Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity: 10% to 90%

Dimension (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight: ≤ 1.16 kg (without HDD, 2.6 lb.)
