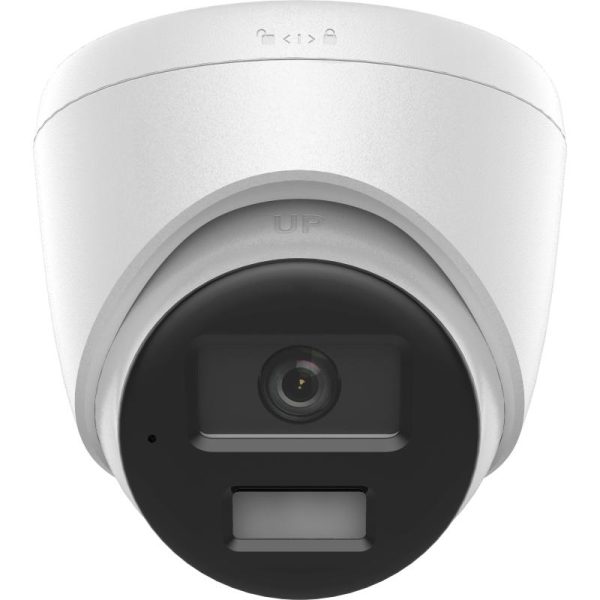

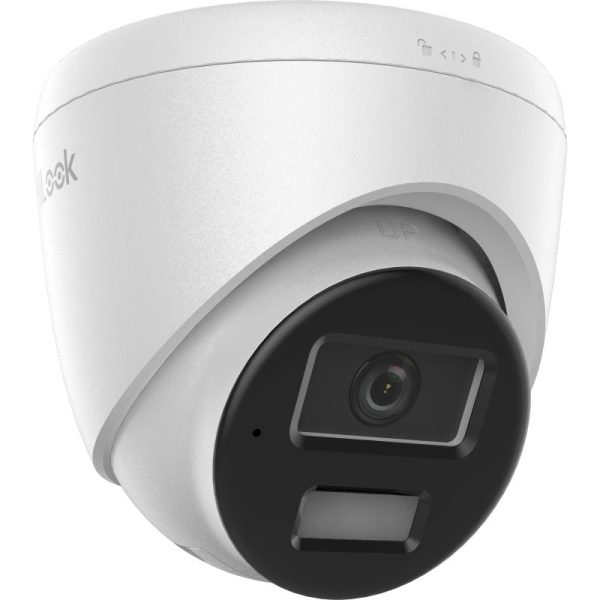

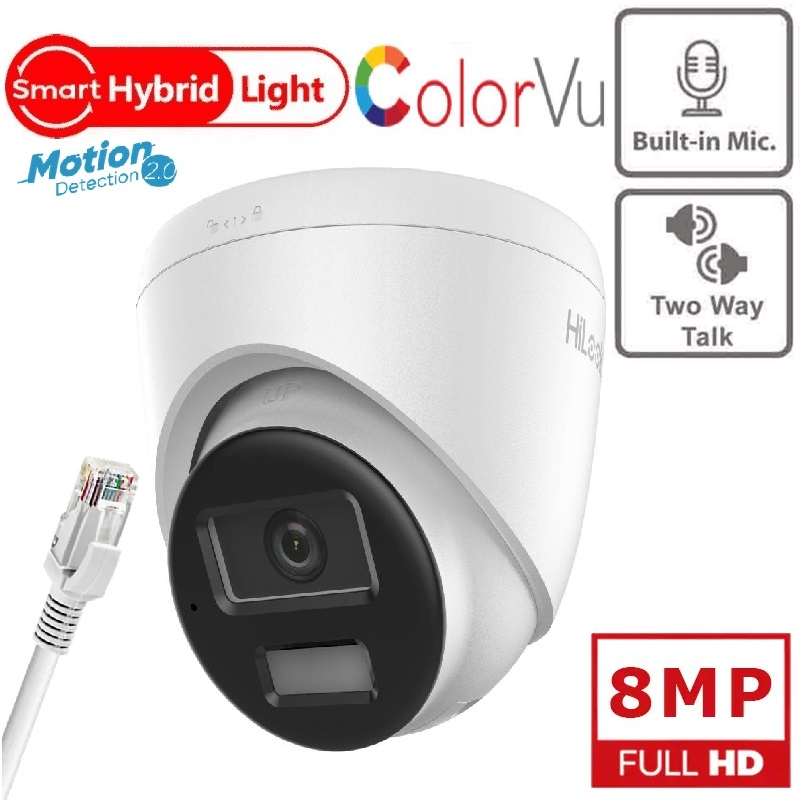

HILOOK 8MP SMART HYBRID LIGHT WITH MIC AND SPEAKER 2.8MM FIXED TURRET NETWORK CAMERA IPC-T280HA-LUF/SL

MEGAPIXEL	8MP
LENS	2.8mm Fixed lens
MANUFACTURER	HILOOK

Camera

Image Sensor: 1/2.7″ Progressive Scan CMOS

Max. Resolution: 3840 × 2160

Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR

Shutter Time1/3 s to 1/100,000 s

Day & Night: IR cut filter

Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°



Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°

Lens Mount: M12

Iris Type: Fixed

Aperture: F2.0



DORI

2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m



Illuminator

Supplement Light Type: IR, White Light

Supplement Light Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm



Video

Main Stream

50 Hz:

12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 16 Mbps

H.264 Type: Baseline Profile, Main Profile, High Profile

H.265 Type: Main Profile

Bit Rate Control: CBR,VBR

Scalable Video Coding (SVC): H.264 and H.265 encoding

Region of Interest (ROI): 1 fixed region for main stream



Audio

Audio Type: Mono sound

Audio Sampling Rate: 8 kHz/16 kHz

Environment Noise Filtering: Yes

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)



Network

Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View: Up to 6 channels

API: Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK

Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client: iVMS-4200, HiLookVision

Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+




Wide Dynamic Range (WDR): 120 dB

SNR: ≥ 52 dB

Day/Night Switch: Day, Night, Auto, Schedule

Image Enhancement: BLC, HLC, 3D DNR

Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,: adjustable by client software or web browser

Privacy Mask: 4 programmable polygon privacy masks



Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone: Yes,1 built-in microphone

Built-in Speaker: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB

Reset Key: Yes



Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception

Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light



General

Power

12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 9.5 W

Material: Metal & Plastic

Dimension: Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)

Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

Weight: Approx. 360 g (0.8 lb.)

With Package Weight: Approx. 551 g (1.2 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language: English, Ukrainian

General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email

Flashing Light: Yes



Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015

IC: ICES-003: Issue 7

Safety

CB: IEC 62368-1: 2014+A11

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU

WEEE: 2012/19/EU

Reach: Regulation (EC) No 1907/2006

Protection: IP67: IEC 60529-2013
