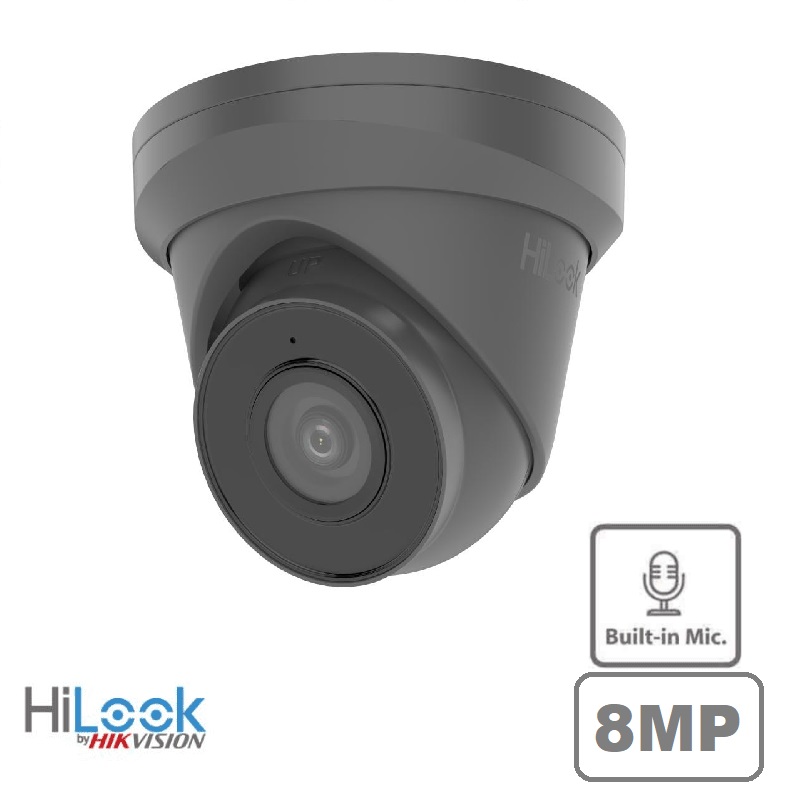

HILOOK IP 8MP POE TURRET CAMERA + MIC IPC-T280H-MUF GREY

LENS	2.8mm Fixed lens
MEGAPIXEL	8MP
PRODUCT TYPE	Camera, IP Camera
MANUFACTURER	HILOOK

Camera

Image Sensor: 1/2.8″ Progressive Scan CMOS

Max. Resolution: 3840 × 2160

Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time: 1/3 s to 1/100,000 s

Day & Night: IR cut filter

Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°



Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127°

4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°

Lens Mount: M12

Iris Type: Fixed

ApertureF2.0



DORI

DORI

2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m

4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m



Illuminator

Supplement Light Type: IR

Supplement Light Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm



Video

Main Stream

50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 16 Mbps

H.264 Type: Baseline Profile/Main Profile/High Profile

H.265 Type: Main Profile

Bit Rate Control: CBR/VBR

Region of Interest (ROI): 1 fixed region for main stream



Network

Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)

Simultaneous Live View: Up to 6 channels

API: Open Network Video Interface (Profile S), ISAPI, SDK

Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client: iVMS-4200, HiLookVision

Web Browser

Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+




Wide Dynamic Range (WDR): 120 dB

SNR: ≥ 52 dB

Day/Night Switch: Day, Night, Auto, Schedule

Image Enhancement: BLC, HLC, 3D DNR

Image Settings: Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Privacy Mask: 4 regions of privacy mask



Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone: Yes



Event

Basic Event: Motion detection, video tampering alarm, exception

Linkage: Notify surveillance center, trigger capture



General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Materia: lMetal

Dimension: Ø110 mm × 95.2 mm (Ø4.3″ × 3.8″)

Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

Weight: Approx. 320 g (0.7 lb.)

With Package Weight: Approx. 530 g (1.2 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language: English, Ukrainian

General Function: Anti-flicker, heartbeat, password protection, password reset via email



Approval

EMC

FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);

RCM (AS/NZS CISPR 32: 2015)

Safety

CB (IEC 62368-1:2014+A11);

CE-LVD (EN 62368-1:2014/A11:2017)

Environment

CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

Protection: IP67 (IEC 60529-2013)
